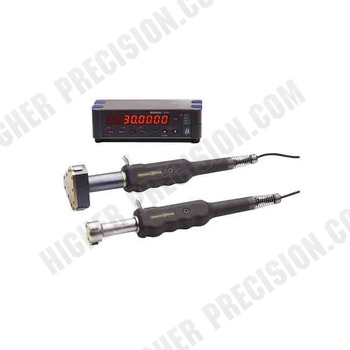

Fowler 54-565-527 Ultima Transducer: .787-3.94″/20-100mm
Product Code: 54-565-527MFGID: 54-565-527
Brand: Fowler
Product Description
Special Features:
- Greater accuracy
- Utilizes Bowers’ “FASTFIT” measuring heads
- Setting rings manufactured to DIN Standard 2250 part 2.
- Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement.
- All 2-6mm sets supplied as standard with depth-stop.
Features:
- Measuring range:.078″-12.3″/2-310mm
- Resolution: .00001″/.0001mm
- Constant spring pressure ensures top repeatability.
- Positive feel when heads self-centre in the bore.
- Fastfit measuring heads for rapid replacement.
- UKAS certificates standard for all measuring heads.
- UKAS certificates standard for all setting rings.
- Ceramic anvils on heads above .472″/12mm
- Blind-bore measurement standard above .472″/12mm
- Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station.
- The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.)
- Depth stops available for all heads.
- Extensions available for deep bore measurement.
