Mitutoyo CalipersMitutoyo 573-282-30 ABSOLUTE Snap Caliper: 0-6″/150mm

mitutoyo 573-282-30 ABSOLUTE Electronic Snap Caliper

Mitutoyo 573-282-30 ABSOLUTE Snap Caliper: 0-6″/150mm

Name: 573-282-30 Mitutoyo ABSOLUTE Electronic Snap Caliper: 0-6"/150mm - Call 800-469-0132 or Buy Online
SKU: 573-282-30
Price: 484.53 USD
Availability: InStock

Product Code: 573-282-30

MFGID: 573-282-30

Brand: Mitutoyo

Range/Size: 0-6"/150mm

Graduations: .0005"/.01mm

Product Description

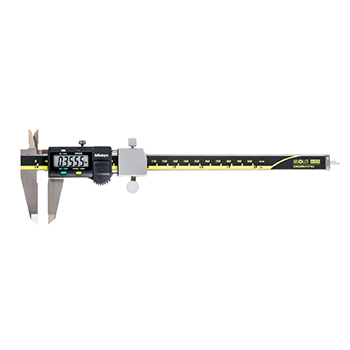

573-282-30 Mitutoyo ABSOLUTE Electronic Snap Caliper: 0-6″/150mm

The Mitutoyo 573-282-30 ABSOLUTE Electronic Snap Caliper has the following specifications:

Range: 0-6″/150mm

Resolution: .0005″/.01mm

Accuracy: +/- .001″

Repeatability: .0005″

Features:

The ABSOLUTE Digimatic snap caliper features a spring-loaded mechanism to allow quick and efficient GO/NO-Go inspection

Ideal caliper for checking Go/No-Go inspection on a large volume of parts

With SPC data output.

Supplied in fitted plastic case.

Technical Data

Display: LCD

Length standard: ABSOLUTE electrostatic capacitance type linear encoder

Measuring force: 7N to 14N (700gf to 1400gf)

Jaw retraction: 2mm

Max. response speed: Unlimited

Battery: SR44

Function

Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)

Alarm: Low voltage, Counting value composition error

Mitutoyo ABSOLUTE Electronic Snap Calipers:

573-281-30 ABSOLUTE Electronic Snap Caliper: 0-4″/0-100mm

573-282-30 ABSOLUTE Electronic Snap Caliper: 0-6″/0-150mm

573-181-30 ABSOLUTE Electronic Snap Caliper: 0-100mm

573-182-30 ABSOLUTE Electronic Snap Caliper: 0-150mm
