Part #: 642MZ
Top Reading Dial Depth Gages - Metric

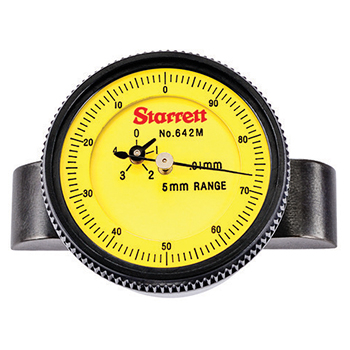

642MZ Starrett Top Reading Dial Depth Gage: 0-215mm
The Starrett 642MZ top reading dial depth gage has the following specifications:
- Range: 0-215mm
- Graduations: .01mm
- Indicator Range: 5mm
- Base Length: 60mm
This dial depth gage uses the back-plunger indicator to provide an upward-facing dial for easier readout. The operator selects the extension and contact point required, zeros the tool on a master and then reads any deviation of the work directly on the dial.
- Indicator does not have to be repositioned to get the full range available
- Choice of 2-1/2" (60mm) or 4" (100mm) base
- Two contacts and five extensions extend the range to 8.6" or 215mm
- Charts are supplied showing combinations of contacts and extensions required to achieve certain lengths.
Starrett 642 & 642M Top Reading Dial Depth Gages:
- 642MZ Top Reading Dial Depth Gage with 60mm Base: 0-215mm
- 642MAZ Top Reading Dial Depth Gage with 100mm Base: 0-215mm
