Starrett MicrometersStarrett 224ARLZ 224 Series Interchangeable Anvil Micrometer: 2-6″

starrett # 224arlz interchangeable anvil micrometer

Starrett 224ARLZ 224 Series Interchangeable Anvil Micrometer: 2-6″

Name: 224ARLZ Starrett 224 Series Interchangeable Anvil Micrometer: 2-6" - Call 800-469-0132 or Buy Online
SKU: 224ARLZ
Price: 688.08 USD
Availability: InStock

Product Code: 224ARLZ

MFGID: 224ARLZ

Brand: Starrett

Range/Size: 2-6"

Graduations: .001"

Product Description

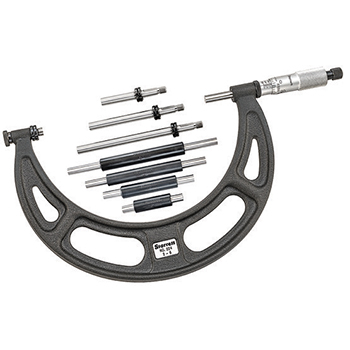

224ARLZ Starrett Interchangeable Anvil Micrometer: 2-6″

The Starrett 224ARLZ interchangeable micrometer has the following specifications:

Range: 2-6″

Graduations: .001″

Standards Included: 2″, 3″, 4″, 5″

Anvil/Spindle Material: Steel

Thimble Type: Ratchet

Lock Nut Type: Knurled Ring Type

Features:

Suitable wrenches are furnished to make necessary adjustments

Combination ratchet and speeder for uniform pressure and quicker adjustment

Quick and easy sleeve adjustment

Advanced sleeve design with staggered lines and distinct figures for precise and easy readability

Balanced frame and thimble design ensure easy handling and better readability

Rigid and stable special cast iron frame with appropriate perforations for lightness and ribbed for strength and stability

Micro-lapped measuring faces

Large thimble diameter with distinct figures

Ring-type knurled lock nut for quick and sure locking

Interchangeable anvils for diversified gaging

Each micrometer is equipped with a series of easily interchangeable anvils, thus providing the full range in steps of 1″ with a single micrometer

These larger sizes have .300″ (7.6mm) anvil and spindle diameters for ease of use on larger work

Extremely hard and stable one-piece spindle

Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights and resists rust

The Starrett 224 & 224.1 Series Interchangeable Anvil Micrometers feature a wide range of measurement and flexibility. Each micrometer is equipped with a series of easily interchangeable anvils, thus providing the full range in steps of 1″ with a single micrometer. Smooth friction thimble for uniform pressure, the combination ratchet and speeder for uniform pressure and quicker adjustment, or a plain micrometer that depends on your own “feel”. Recommended for mechanics, automotive service and machine shops, tool rooms, inspection departments and wherever gaging involves a wide range of measurements.

Starrett 224 & 224.1 Series Interchangeable Anvil Micrometers:

224AARLZ Interchangeable Anvil Micrometer: 0-4″

224ARLZ Interchangeable Anvil Micrometer: 2-6″

224.1BRLZ Interchangeable Anvil Micrometer: 6-9″

224.1GRLZ Interchangeable Anvil Micrometer: 6-12″

224.1CRLZ Interchangeable Anvil Micrometer: 9-12″

224.1DRLZ Interchangeable Anvil Micrometer: 12-16″

224.1ERLZ Interchangeable Anvil Micrometer: 16-20″

224.1JRLZ Interchangeable Anvil Micrometer: 20-24″

Starrett 224M & 224.1M Series Interchangeable Anvil Micrometers:

224MAARLZ Interchangeable Anvil Micrometer: 0-100mm

224MARLZ Interchangeable Anvil Micrometer: 50-150mm
