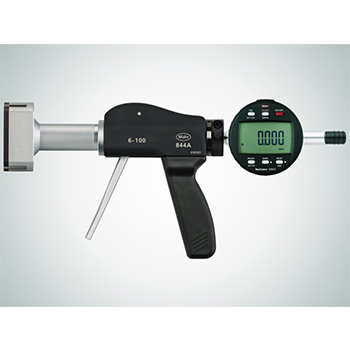

MAHR Bore GagesMahr 4487614 Digital Self-Centering Bore Gage: 4-4.9″

mahr 4487614 digital self-centering measuring pistol

Mahr 4487614 Digital Self-Centering Bore Gage: 4-4.9″

Product Code: 4487614

MFGID: 4487614

Brand: MAHR

Measuring Range: 100-125mm (4-4.9")

Measuring Depth: 132/(282**)mm

Product Description

4487614 Mahr Digital Self-Centering Measuring Pistol: 100-125mm (4-4.9″)

The Mahr 4487614 Digital Self-Centering Measuring Pistol has the following specifications:

Measuring Range: 100-125mm (4-4.9″)
Measuring Depth: 132/(282**)mm
Error limit G*: 5/.0002?m

Features:

Basic Instrument consists of: 844 Ag and Measuring Head 44 Ak
Threaded connection for changing the measuring heads
Self-Centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
Anvils from 12mm are carbide tipped
From 12mm the anvils can be used to measure to the bottom of a bore
From 40mm all measuring heads are made from aluminum to reduce weight
Supplied with: Case and operating instructions

Mahr Digital Self-Centering Measuring Pistols:

4487700 Digital Self-Centering Measuring Pistol: 6-8mm (.25-.3125″)
4487701 Digital Self-Centering Measuring Pistol: 8-10mm (.3125-.4″)
4487702 Digital Self-Centering Measuring Pistol: 10-12mm (.4-.4725″)
4487703 Digital Self-Centering Measuring Pistol: 12-16mm (.4725-.625″)
4487704 Digital Self-Centering Measuring Pistol: 16-20mm (.625-.775″)
4487705 Digital Self-Centering Measuring Pistol: 20-25mm (.775-1″)
4487706 Digital Self-Centering Measuring Pistol: 25-30mm (1-1.2″)
4487707 Digital Self-Centering Measuring Pistol: 30-40mm (1.2-1.6″)
4487709 Digital Self-Centering Measuring Pistol: 40-50mm (1.6-2″)
4487710 Digital Self-Centering Measuring Pistol: 50-60mm (2-2.35″)
4487711 Digital Self-Centering Measuring Pistol: 60-70mm (2.35-2.75″)
4487612 Digital Self-Centering Measuring Pistol: 70-85mm (2.75-3.35″)
4487613 Digital Self-Centering Measuring Pistol: 85-100mm (3.35-4″)
4487614 Digital Self-Centering Measuring Pistol: 100-125mm (4-4.9″)
4487615 Digital Self-Centering Measuring Pistol: 125-150mm (4.9-5.9″)
4487616 Digital Self-Centering Measuring Pistol: 150-175mm (5.9-6.9″)
4487617 Digital Self-Centering Measuring Pistol: 175-200mm (6.9-7.9″)

Mahr Digital Self-Centering Measuring Pistol Sets:

4487750 Digital Self-Centering Measuring Pistol Set: 6-12mm (.25-.4725″)
4487751 Digital Self-Centering Measuring Pistol Set: 12-20mm (.4725-.775″)
4487752 Digital Self-Centering Measuring Pistol Set: 20-50mm (.775″-2″)
4487753 Digital Self-Centering Measuring Pistol Set: 50-100mm (2-4″)

Mahr Digital Self-Centering Measuring Pistol Sets: No Indicator

4487760 Digital Self-Centering Measuring Pistol Set – No Indicator: 6-12mm (.25-.4725″)
4487761 Digital Self-Centering Measuring Pistol Set – No Indicator: 12-20mm (.4725-.775″)
4487762 Digital Self-Centering Measuring Pistol Set – No Indicator: 20-50mm (.775-2″)
4487763 Digital Self-Centering Measuring Pistol Set – No Indicator: 50-100mm (2-4″)
