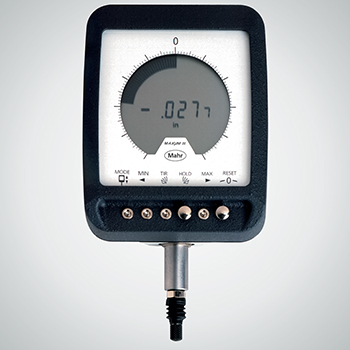

Mahr 2033127 Maxum III Digital Comparator: 1.50″/38mm
Product Code: 2033127MFGID: 2033127
Brand: MAHR
Product Description
2033127 Mahr Maxum III Digital Comparator – Short Range: 38mm / 1.50″
The Mahr 2033127 Maxum III Digital Comparator – Short Range has the following specifications:
- Digital Range – Short – long range: ±1.00mm / ± .040″ – ±1.99mm / ± .100″
- Digital Resolution – short – long range: 0.005mm / .0005″ – 0.005mm / .0005″
- Accuracy – Short – Long range: 0.5% of Total Range – 0.35% of Total Range
- Stem Diameter: 8mm
- Stem length: 38mm / 1.50″
- Total spindle travel – Short – long range: 3.04mm / .120″ – 6.35mm / .250″
- Weight: 385 g / 13.6 oz.
- Temperature Operating: 10° to 55°C / 50° to 130°F
- Gaging force: 3-4 oz/85 -112 grams, preloaded
- Battery Life: 4000 hours
Features:
- Feature both display for accuracy and readability and unique fan analogue display trend and change.
- User configurable in inch/metric units, normal / reverse sensing, resolution, analog scale, and tolerance setup & display.
- Dynamic capabilities: min, max, TIr, hold,reset.
- “Absolute” transducer – no over speed errors no missed counts. no missed readings.
- Auto – power down – provides extremely low battery consumption, assuring long life from readily available commercial batteries.
- Data output – 3 formals – Maxum, serial, or digimatic.
- Both integral and remote readout versions available.
- Easily used on snap gages Bore Gages, Comparator Stands, and Fixture Gages. Auto – power down – provides extremely low battery consumption, assuring long life from readily available commercial batteries.
- Special optional available: setup mode or calibration lockout, remote external power 4:5 ratio, 12 o’clock mounted integral transducer, integral vertical or horizontal lug back, 1.5, 2.0 or 3.0 inch stem length, and more.
- IP54 protection.
- Easy to select, order and operate.
Mahr Maxum III Digital Comparators – Long Range:
- 2033102 Maxum III Digital Comparator: 17mm/.670″ – No output
- 2033104 Maxum III Digital Comparator: 38mm/1.50″ – No output
- 2033106 Maxum III Digital Comparator: 17mm/.670″ – 8mm
- 2033108 Maxum III Digital Comparator: 38mm/1.50″ – 8mm
- 2033112 Maxum III Digital Comparator: 17mm/.670″ – Digital output 6pin
- 2033114 Maxum III Digital Comparator: 38mm/1.50″ – Digital output 6pin
- 2033116 Maxum III Digital Comparator: 17mm/.670″ – 8mm
- 2033118 Maxum III Digital Comparator: 38mm/1.50″ – 8mm
- 2033122 Maxum III Digital Comparator: 17mm/.670″ – Digital output 10pin
- 2033124 Maxum III Digital Comparator: 38mm/1.50″ – Digital output 10pin
- 2033126 Maxum III Digital Comparator: 17mm/.670″ – 8mm
- 2033128 Maxum III Digital Comparator: 38mm/1.50″ – 8mm
Mahr Maxum III Digital Comparators – Short Range:
- 2033101 Maxum III Digital Comparator: 17mm/.670″ – No output
- 2033103 Maxum III Digital Comparator: 38mm/1.50″ – No output
- 2033105 Maxum III Digital Comparator: 17mm/.670″ – Stem diameter 8mm
- 2033107 Maxum III Digital Comparator: 38mm/1.50″ – Stem diameter 8mm
- 2033111 Maxum III Digital Comparator: 17mm/.670″ – Digital output 6pin
- 2033113 Maxum III Digital Comparator: 38mm/1.50″ – Digital output 6pin
- 2033115 Maxum III Digital Comparator: 17mm/.670″ – Stem diameter 8mm
- 2033117 Maxum III Digital Comparator: 38mm/1.50″ – Stem diameter 8mm
- 2033121 Maxum III Digital Comparator: 17mm/.670″ – Digital output 10pin
- 2033123 Maxum III Digital Comparator: 38mm/1.50″ – Digital output 10pin
- 2033125 Maxum III Digital Comparator: 17mm/.670″ – Stem diameter 8mm
- 2033127 Maxum III Digital Comparator: 38mm/1.50″ – Stem diameter 8mm
