  • Product Code: #54-567-720-BT

    Bluetooth XTH3 Holematic Pistol Grip # 54-567-720-BT

    Range: .750-1.00"/20-25mm

    Resolution: .00005"/.001mm

    Price: $2,395.14 $2,215.51
    Lowest Price Guaranteed
    Quantity

    Product Description

    54-567-720-BT Fowler Bluetooth XTH3 Holematic Pistol Grip: .750-1.00"/20-25mm

    The Fowler/Bowers 54-567-720-BT Bluetooth XTH3 Electronic Holematic Pistol Grip Bore Gage has the following specifications:

    • Range: .750-1.00"/20-25mm
    • Resolution: .00005"/.001mm
    • Accuracy: +/- .00015"/0.004mm
    • Depth: 2.62"/66mm
    • Measuring Contacts: 3-Point

    The new Fowler/Bowers Bluetooth XTH3 Holematic Pistol Grip Bore Gage sets have been arriving from Bowers Metrology in England over the past few months and are now available for online purchase. The new XTH3 pistol grip sets are now available with Bluetooth so customers do not have to have the readouts hooked up to a computer with cables.  By a simple press of a button, the dimension on the pistol grip readout is sent to the computer.  Bowers has always been known to have great electronics and the new Bluetooth XTH3 Pistol Grips are in a class of their own.  The new ergonomic handle makes sending data to the computer easier than ever.

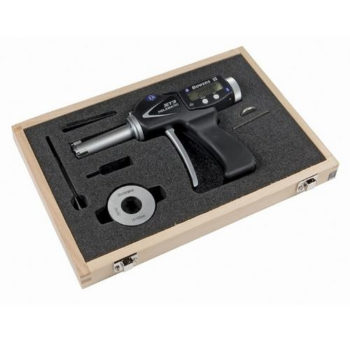

    The Fowler/Bowers 54-567-720-BT Bluetooth XTH3 Holematic Pistol Grip Set is made up of the following:

    • 54-567-400-BT Fowler Bluetooth XTH3 Holematic Pistol Grip: .750-4.00"/20-100mm
    • 54-342-016 Fowler XT Head: .750-1.00"/20-25mm
    • 54-332-009 Fowler XT Setting Ring: .750"/20mm

    Features:

    • Bluetooth output
    • 5-year warranty
    • Large easy-to-read swivel display
    • Self centering heads
    • RS-232C output and USB connectivity
    • 3 Preset memories
    • Fixed anvils
    • Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up./li>
    • sizes over .500" (12.5mm) feature blind bore capability
    • Heads with special anvils available for threads, splines, slots, etc.
    • Setting rings included in all sets
    • Includes UKAS certificates for micrometer, heads and setting rings
    • Special anvils available

    Fowler Bluetooth XTH3 Electronic Holematic Pistol Grip Bore Gages

    2-Point Individuals:

    • 54-567-701-BT Bluetooth XTH3 Holematic Pistol Grip: .080-.100"/2-2.5mm
    • 54-567-702-BT Bluetooth XTH3 Holematic Pistol Grip: .100-.120"/2.5-3mm
    • 54-567-703-BT Bluetooth XTH3 Holematic Pistol Grip: .120-.160"/3-4mm
    • 54-567-704-BT Bluetooth XTH3 Holematic Pistol Grip: .160-.200"/4-5mm
    • 54-567-705-BT Bluetooth XTH3 Holematic Pistol Grip: .200-.250"/5-6mm

    3-Point Individuals:

    • 54-567-706-BT Bluetooth XTH3 Holematic Pistol Grip: .250-.312"/6-8mm
    • 54-567-708-BT Bluetooth XTH3 Holematic Pistol Grip: .312-.375"/8-10mm
    • 54-567-710-BT Bluetooth XTH3 Holematic Pistol Grip: .375-.500"/10-12.5mm
    • 54-567-712-BT Bluetooth XTH3 Holematic Pistol Grip: .500-.625"/12.5-16mm
    • 54-567-716-BT Bluetooth XTH3 Holematic Pistol Grip: .625-.750"/16-20mm
    • 54-567-720-BT Bluetooth XTH3 Holematic Pistol Grip: .750-1.00"/20-25mm
    • 54-567-725-BT Bluetooth XTH3 Holematic Pistol Grip: 1.0-1.375"/25-35mm
    • 54-567-735-BT Bluetooth XTH3 Holematic Pistol Grip: 1.375-2.0"/35-50mm
    • 54-567-740-BT Bluetooth XTH3 Holematic Pistol Grip: 2.0-2.625"/50-65mm
    • 54-567-745-BT Bluetooth XTH3 Holematic Pistol Grip: 2.625-3.25"/65-80mm
    • 54-567-750-BT Bluetooth XTH3 Holematic Pistol Grip: 3.25-4.00"/65-100mm
    • 54-567-800-BT Bluetooth XTH3 Holematic Pistol Grip: 4.00-5.00"/100-125mm
    • 54-567-825-BT Bluetooth XTH3 Holematic Pistol Grip: 5.00-6.00"/125-150mm
    • 54-567-850-BT Bluetooth XTH3 Holematic Pistol Grip: 6.00-7.00"/150-175mm
    • 54-567-875-BT Bluetooth XTH3 Holematic Pistol Grip: 7.00-8.00"/175-200mm
    • 54-567-876-BT Bluetooth XTH3 Holematic Pistol Grip: 8.00-9.00"/200-225mm
    • 54-567-877-BT Bluetooth XTH3 Holematic Pistol Grip: 9.00-10.0"/225-250mm
    • 54-567-878-BT Bluetooth XTH3 Holematic Pistol Grip: 10.0-11.0"/250-275mm
    • 54-567-879-BT Bluetooth XTH3 Holematic Pistol Grip: 11.0-12.0"/275-300mm

    Large Capacity Sets:

    • 54-567-009-BT Bluetooth XTH3 Holematic Pistol Grip Set: .080-.250"/2-6mm
    • 54-567-010-BT Bluetooth XTH3 Holematic Pistol Grip Set: .250-.375"/6-10mm
    • 54-567-020-BT Bluetooth XTH3 Holematic Pistol Grip Set: .375-.750"/10-20mm
    • 54-567-050-BT Bluetooth XTH3 Holematic Pistol Grip Set: .750-2.00"/20-50mm
    • 54-567-100-BT Bluetooth XTH3 Holematic Pistol Grip Set: 2.00-4.00"/50-100mm
    • 54-567-105-BT Bluetooth XTH3 Holematic Pistol Grip Set: 4.00-6.00"/100-150mm
    • 54-567-110-BT Bluetooth XTH3 Holematic Pistol Grip Set: 6.00-8.00"/150-200mm
    • 54-567-200-BT Bluetooth XTH3 Holematic Pistol Grip Set: 4.00-8.00"/100-200mm
    • 54-567-210-BT Bluetooth XTH3 Holematic Pistol Grip Set: .750-4.00"/20-100mm
    • 54-567-620-BT Bluetooth XTH3 Holematic Pistol Grip Set: .250-.750"/6-20mm

    A short video on the Fowler/Bowers 54-567-720-BT Bluetooth XTH3 Holematic Pistol Grip Set: (Large capacity set shown as example)

    • What is included with the gage
    • Quick product overview
  •
