PRODUCT CODE: 54-370-302

XT500 Gage Head # 54-370-302

Range: 12.795-13.770"/325-350mm

Accuracy: .0006"/.015mm

Request Quote

Product Description

54-370-302 Fowler XT500 Gage Head Only: 12.795″-13.770″/325-350mm

The Fowler 54-370-302 XT500 Gage Head Only has the following specifications:

  • Range: 12.795″-13.770″/325-350mm
  • Accuracy: .0006″/.015mm
  • Measuring Depth: 4.724″/120mm

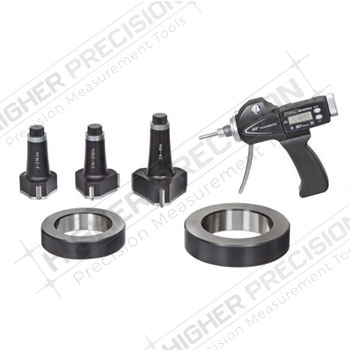

The Bowers XT500 large diameter 3-point bore gage has been designed specifically for the measurement of internal diameters between 300mm (11.811″) and 500mm (19.685″). The newly designed constant-force digital readout ensures that the measuring pressure remains constant throughout the measurement while radiussed measuring anvils provide optimum centralization in the part. Anvil sets are supplied in 25mm” steps and each set has been manufactured to the exact toleranced size. The 300mm”-500mm” anvils are the master reference set and are used for setting the gage in the setting ring. The other anvil sets are then fitted as required without further re-setting. This means that only one 300mm setting ring is required to set the gage for all diameters in the full 300mm to 500mm range of the instrument.

  • Measuring range: 11.811″-12.795″/300-325mm
  • Measuring Depth: 4.724″/120mm
  • New constant-force digital readout
  • Single 300mm setting ring covers full range
  • Radiussed anvils of tool-steel for optimum centering
  • Accuracy: .0006″/.015mm
  • Repeatability: .0001″/.003mm
  • IP65 electronics
  • RS-232 output and USB connectivity
  • Resolution: .0005″/.00005″ (0.01/0.001mm). Metric/Inch switchable
  • Fast accurate measurement
  • Extensions available for deeper bores (max depth 2.5m)
  • UKAS certificate with setting ring
  • Certificate of conformity with bore gage
  • Supplied in fitted case

XT500 Gage Head Only:

  • 54-370-301: XT500 Gage Head – 11.811″-12.795″/300-325mm
  • 54-370-302: XT500 Gage Head – 12.795″-13.770″/325-350mm
  • 54-370-303: XT500 Gage Head – 13.799″-14.764″/350-375mm
  • 54-370-304: XT500 Gage Head – 14.764″-15.748″/375-400mm
  • 54-370-305: XT500 Gage Head – 15.748″-16.732″/400-425mm
  • 54-370-306: XT500 Gage Head – 16.732″-17.716″/425-450mm
  • 54-370-307: XT500 Gage Head – 17.716″-18.701″/450-475mm
  • 54-370-308: XT500 Gage Head – 18.701″-19.685″/475-500mm
