PRODUCT CODE: 54-565-020

Fowler Ultima Bore Gage Sets

Range: .390"-.790"/10-20mm

Resolution: .00001"/.0001mm

Request Quote

Product Description

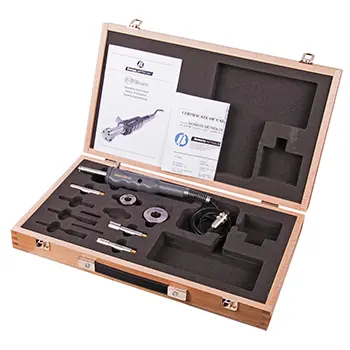

54-565-020 Fowler Ultima Bore Gage Set: .390-.790″/10-20mm

The Fowler 54-565-020 Ultima Bore Gage Set has the following specifications:

  • Range: .390-.790″/10-20mm
  • Resolution: .00001″/.0001mm
  • Includes: handles, rings & heads. Does not include readout

Featuring Bowers’ historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower’s famous Super-Bore line of bore gages and accessories.

  • Measuring range: .390″ – .790″/10-20mm
  • Resolution: .00001″/.0001mm
  • Includes: handles, rings & heads. Does not include readout
  • Constant spring pressure ensures top repeatability.
  • Positive feel when heads self-centre in the bore.
  • Fastfit measuring heads for rapid replacement.
  • UKAS certificates standard for all measuring heads.
  • UKAS certificates standard for all setting rings.
  • Ceramic anvils on heads above .472″/12mm
  • Blind-bore measurement standard above .472″/12mm
  • Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station.
  • The complete range of Bowers special heads are available for the Ultima (grooves,threads, splines, deep-bores etc.).
  • Depth stops available for all heads.
  • Extensions available for deep bore measurement.

Special features:

  • Greater accuracy
  • Utilizes Bowers’ “FASTFIT” measuring heads
  • Setting rings manufactured to DIN Standard 2250 part 2.
  • Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement.
  • All 2-6mm sets supplied as standard with depth-stop.

Fowler Ultima Bore Gage Sets

  • 54-565-020: Ultim Bore Gage Set: .390″-.790″/10-20mm
  • 54-565-070: Ultima Bore Gage Set: .240″-.790″/6-20mm
  • 54-565-080: Ultima Bore Gage Set: .790″-1.97″/20-50mm
  • 54-565-090: Ultima Bore Gage Set: 1.97″-3.94″/50-100mm
  • 54-565-100: Ultima Bore Gage Set: .790″-3.94″/20-100mm
