Mahr 4191035 Digital Inside Micrometer: 4.9-5.9″/125-150mm
Product Code: 4191035MFGID: 4191035
Brand: MAHR
Product Description

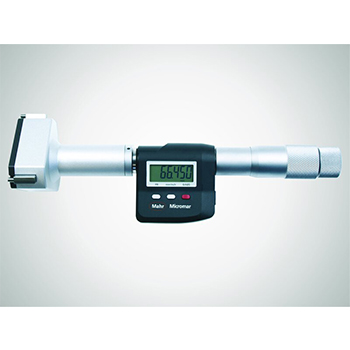

4191035 Mahr Digital Self-Centering Inside Micrometer: 125-150mm (4.9-5.9″)
The Mahr 4191035 Digital Self-Centering Inside Micrometer has the following specifications:
- Measuring Range: 125-150mm (4.9-5.9″)
- Measuring Depth: 132/(282**)mm
- Readings: 0.001mm/.00005″
- Error Limit G*: 6μm
Functions:
0 (Setting the display to zero for Relative measurement) ABS (Switching between Relative and Absolute measurement) mm/inch PR (Reference setting)
Features:
- Immediate measurement due to the Reference system
- Basic Instrument consists of: Basic Unit 44 EXg and Measuring Head 44 Ak
- Threaded connection for changing the measuring heads
- Self-Centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
- Anvils from 12 mm are carbide tipped
- From 12 mm the anvils can be used to measure to the bottom of a bore
- From 40 mm all measuring heads are made from aluminum to reduce weight
- Supplied with: Case battery and operating instructions
Mahr Digital Self-Centering Inside Micrometers:
- 4191120 Digital Self-Centering Inside Micrometer: 6-8mm (.25-.3125″)
- 4191121 Digital Self-Centering Inside Micrometer: 8-10mm (.3125-.4″)
- 4191122 Digital Self-Centering Inside Micrometer: 10-12mm (.4-.4725″)
- 4191123 Digital Self-Centering Inside Micrometer: 12-16mm (.4725-.625″)
- 4191124 Digital Self-Centering Inside Micrometer: 16-20mm (.625-.775″)
- 4191125 Digital Self-Centering Inside Micrometer: 20-25mm (.775-1″)
- 4191126 Digital Self-Centering Inside Micrometer: 25-30mm (1-1.2″)
- 4191127 Digital Self-Centering Inside Micrometer: 30-40mm (1.2-1.6″)
- 4191129 Digital Self-Centering Inside Micrometer: 40-50mm (1.6-2″)
- 4191130 Digital Self-Centering Inside Micrometer: 50-60mm (2-2.35″)
- 4191131 Digital Self-Centering Inside Micrometer: 60-70mm (2.35-2.75″)
- 4191032 Digital Self-Centering Inside Micrometer: 70-85mm (2.75-3.35″)
- 4191033 Digital Self-Centering Inside Micrometer: 85-100mm (3.35-4″)
- 4191034 Digital Self-Centering Inside Micrometer: 100-125mm (4-4.9″)
- 4191035 Digital Self-Centering Inside Micrometer: 125-150mm (4.9-5.9″)
- 4191036 Digital Self-Centering Inside Micrometer: 150-175mm (5.9-6.9″)
- 4191037 Digital Self-Centering Inside Micrometer: 175-200mm (6.9-7.9″)
Mahr Digital Self-Centering Inside Micrometer Sets:
