MAHR Bore GagesMahr 4191032 Digital Inside Micrometer: 2.75-3.35″/70-85mm

mahr 4191032 digital self-centering inside micrometer

Mahr 4191032 Digital Inside Micrometer: 2.75-3.35″/70-85mm

Name: 4191032 Mahr Digital Self-Centering Inside Micrometer: 70-85mm (2.75-3.35") - Call 800-469-0132 or Buy Online
SKU: 4191032
Price: 2171.40 USD
Availability: InStock

Product Code: 4191032

MFGID: 4191032

Brand: MAHR

Measuring Range: 70-85mm (2.75-3.35")

Measuring Depth: 97/(247**)mm

Product Description

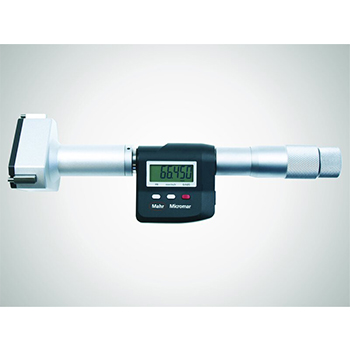

4191032 Mahr Digital Self-Centering Inside Micrometer: 70-85mm (2.75-3.35″)

The Mahr 4191032 Digital Self-Centering Inside Micrometer has the following specifications:

Measuring Range: 70-85mm (2.75-3.35″)

Measuring Depth: 97/(247**)mm

Readings: 0.001mm/.00005″

Error Limit G*: 5μm

Functions:

0 (Setting the display to zero for Relative measurement) ABS (Switching between Relative and Absolute measurement) mm/inch PR (Reference setting)

Features:

Immediate measurement due to the Reference system

Basic Instrument consists of: Basic Unit 44 EXg and Measuring Head 44 Ak

Threaded connection for changing the measuring heads

Self-Centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°

Anvils from 12 mm are carbide tipped

From 12 mm the anvils can be used to measure to the bottom of a bore

From 40 mm all measuring heads are made from aluminum to reduce weight

Supplied with: Case battery and operating instructions

Mahr Digital Self-Centering Inside Micrometers:

4191120 Digital Self-Centering Inside Micrometer: 6-8mm (.25-.3125″)

4191121 Digital Self-Centering Inside Micrometer: 8-10mm (.3125-.4″)

4191122 Digital Self-Centering Inside Micrometer: 10-12mm (.4-.4725″)

4191123 Digital Self-Centering Inside Micrometer: 12-16mm (.4725-.625″)

4191124 Digital Self-Centering Inside Micrometer: 16-20mm (.625-.775″)

4191125 Digital Self-Centering Inside Micrometer: 20-25mm (.775-1″)

4191126 Digital Self-Centering Inside Micrometer: 25-30mm (1-1.2″)

4191127 Digital Self-Centering Inside Micrometer: 30-40mm (1.2-1.6″)

4191129 Digital Self-Centering Inside Micrometer: 40-50mm (1.6-2″)

4191130 Digital Self-Centering Inside Micrometer: 50-60mm (2-2.35″)

4191131 Digital Self-Centering Inside Micrometer: 60-70mm (2.35-2.75″)

4191032 Digital Self-Centering Inside Micrometer: 70-85mm (2.75-3.35″)

4191033 Digital Self-Centering Inside Micrometer: 85-100mm (3.35-4″)

4191034 Digital Self-Centering Inside Micrometer: 100-125mm (4-4.9″)

4191035 Digital Self-Centering Inside Micrometer: 125-150mm (4.9-5.9″)

4191036 Digital Self-Centering Inside Micrometer: 150-175mm (5.9-6.9″)

4191037 Digital Self-Centering Inside Micrometer: 175-200mm (6.9-7.9″)

Mahr Digital Self-Centering Inside Micrometer Sets:

4191160 Digital Self-Centering Inside Micrometer Set: 6-12mm (.25-.4725″)

4191161 Digital Self-Centering Inside Micrometer Set: 12-20mm (.4725-.775″)

4191162 Digital Self-Centering Inside Micrometer Set: 20-50mm (.775″-2″)

4191163 Digital Self-Centering Inside Micrometer Set: 50-100mm (2-4″)
