PRODUCT CODE: 4487760

Digital Self-Centering Measuring Pistol Sets

Measuring range: 6-12mm/.25-.4725"

Number of measuring heads: 3

Price: $2867 $2440.00
Lowest Price Guaranteed
Request Quote

Product Description

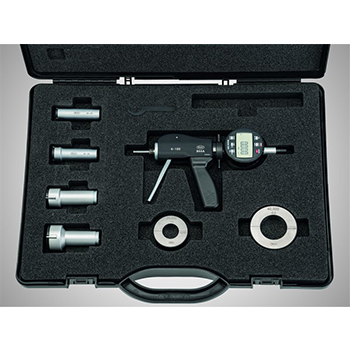

4487760 Mahr Digital Self-Centering Measuring Pistol Set: 6-12mm/.25-.4725″

The Mahr 4487760 Digital Self-Centering Measuring Pistol Set has the following specifications:

    • Measuring Range: 6-12mm/.25-.4725″
    • Resolution: .0005mm/.000002″
    • Number of Measuring Heads: 3
    • Ring Gages DIA.: 8mm & 10mm

Features:

  • Basic Instrument consists of: 844 Ag and Measuring Head 44 Ak
  • Threaded connection for changing the measuring heads
  • Self-Centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
  • Anvils from 12 mm are carbide tipped
  • From 12 mm the anvils can be used to measure to the bottom of a bore
  • From 40 mm all measuring heads are made from aluminum to reduce weight
  • Supplied with: Case and operating instructions

Mahr Digital Self-Centering Measuring Pistol Sets: No Indicator

  • 4487760 Digital Self-Centering Measuring Pistol Set – No Indicator: 6-12mm (.25-.4725″)
  • 4487761 Digital Self-Centering Measuring Pistol Set – No Indicator: 12-20mm (.4725-.775″)
  • 4487762 Digital Self-Centering Measuring Pistol Set – No Indicator: 20-50mm (.775-2″)
  • 4487763 Digital Self-Centering Measuring Pistol Set – No Indicator: 50-100mm (2-4″)

Mahr Digital Self-Centering Measuring Pistol Sets:

  • 4487750 Digital Self-Centering Measuring Pistol Set: 6-12mm (.25-.4725″)
  • 4487751 Digital Self-Centering Measuring Pistol Set: 12-20mm (.4725-.775″)
  • 4487752 Digital Self-Centering Measuring Pistol Set: 20-50mm (.775-2″)
  • 4487753 Digital Self-Centering Measuring Pistol Set: 50-100mm (2-4″)

Mahr Digital Self-Centering Measuring Pistols:

  • 4487700 Digital Self-Centering Measuring Pistol: 6-8mm (.25-.3125″)
  • 4487701 Digital Self-Centering Measuring Pistol: 8-10mm (.3125-.4″)
  • 4487702 Digital Self-Centering Measuring Pistol: 10-12mm (.4-.4725″)
  • 4487703 Digital Self-Centering Measuring Pistol: 12-16mm (.4725-.625″)
  • 4487704 Digital Self-Centering Measuring Pistol: 16-20mm (.625-.775″)
  • 4487705 Digital Self-Centering Measuring Pistol: 20-25mm (.775-1″)
  • 4487706 Digital Self-Centering Measuring Pistol: 25-30mm (1-1.2″)
  • 4487707 Digital Self-Centering Measuring Pistol: 30-40mm (1.2-1.6″)
  • 4487709 Digital Self-Centering Measuring Pistol: 40-50mm (1.6-2″)
  • 4487710 Digital Self-Centering Measuring Pistol: 50-60mm (2-2.35″)
  • 4487711 Digital Self-Centering Measuring Pistol: 60-70mm (2.35-2.75″)
  • 4487612 Digital Self-Centering Measuring Pistol: 70-85mm (2.75-3.35″)
  • 4487613 Digital Self-Centering Measuring Pistol: 85-100mm (3.35-4″)
  • 4487614 Digital Self-Centering Measuring Pistol: 100-125mm (4-4.9″)
  • 4487615 Digital Self-Centering Measuring Pistol: 125-150mm (4.9-5.9″)
  • 4487616 Digital Self-Centering Measuring Pistol: 150-175mm (5.9-6.9″)
  • 4487617 Digital Self-Centering Measuring Pistol: 175-200mm (6.9-7.9″)
