Mahr 4475002 Self Centering Bore Gage: 4-10″/100-250mm
Product Code: 4475002MFGID: 4475002
Brand: MAHR
Product Description
4475002 Mahr MaraMeter Self Centering Dial Bore Gage: 100-250mm/4-10″
The Mahr 4475002 MaraMeter Self Centering Dial Bore Gage – 844 NH has the following specifications:
- Measuring Range: 100-250mm/4-10″
- Error limit: 2μm
- Repeatability: 0.5μm
- Distance of movable anvil: 1.6
- Measuring depth: 230mm
- Moving anvil and stationary anvil are carbide-tipped
- No indicator included
Features
- Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball.
- Transmission lever system transfers movement of the movable anvil to indicating instrument.
- The broad centering bridge ensures automatic centering in the bore.
- Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel.
- Highly resistant to wear and tear because of carbide tipped moving anvil.
- Constant measuring force due to built-in spring, eliminating user influence.
- Universally applicable and extremely versatile as every instrument spans a broad measuring range, within this range it is quick and easy to adjust to any size.
- Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops.
- Invar steel has a particularly low expansion coefficient and thus makes the instrument totally insensitive to any kind of heat. Body heat from the user, increases in ambient temperature have no influence on the measuring results.

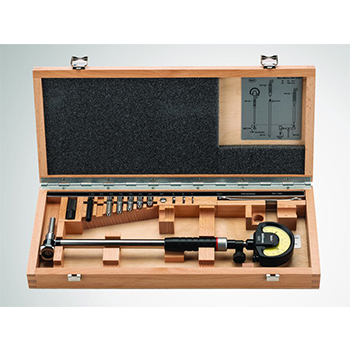

- Scope of delivery: Measuring holder, Measuring Head, Anvil spindle, Wooden case, excludes indicator.
Application:
- Measuring the diameter, roundness and conical form of a bore as well as the distances of parallel plane surfaces.
Mahr MaraMeter Self Centring Dial Bore Gages – 844 NH:
- 4475000 MaraMeter Self Centering Dial Bore Gage: 18-50mm/.7-2″
- 4475001 MaraMeter Self Centering Dial Bore Gage: 35-100mm/1.4-4″
- 4475002 MaraMeter Self Centering Dial Bore Gage: 100-250mm/4-10″
- 4475003 MaraMeter Self Centering Dial Bore Gage: 250-400mm/10-16″
- 4475004 MaraMeter Self Centering Dial Bore Gage: 400-800mm/16-32″
- 4475005 MaraMeter Self Centering Dial Bore Gage: 250-800mm/10-32″
