PRODUCT CODE: 4474180
MaraMeter Self Centering Dial Bore Gage – # 4474180
Price: $1340 $1313.2
Lowest Price Guaranteed
4474180 Mahr MaraMeter Self Centering Dial Bore Gage: 50-110mm/2-4.33″
The Mahr 4474180 MaraMeter Self Centering Dial Bore Gage – 844 NB has the following specifications:
- Measuring Range: 50-110mm/2-4.33″
- Error limit: 3mm
- Repeatability: 1mm
- Indicator not included
- Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball.
- Transmission lever system transfers movement of the movable anvil to indicating instrument.
- The broad centering bridge ensures automatic centering in the bore.
- Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel.
- Highly resistant to wear and tear because of carbide tipped moving anvil.
- Constant measuring force due to built-in spring, eliminating user influence.
- Universally applicable and extremely versatile as every instrument spans a broad measuring range, within this range it is quick and easy to adjust
to any size.
- Extensive modular system is composed of measuring head, holder, extensions, right angle attachments and depth stops.
- Invar steel has a particularly low expansion coefficient and thus makes the instrument totally insensitive to any kind of heat. Body heat from the
user, increases in ambient temperature have no influence on the measuring results.

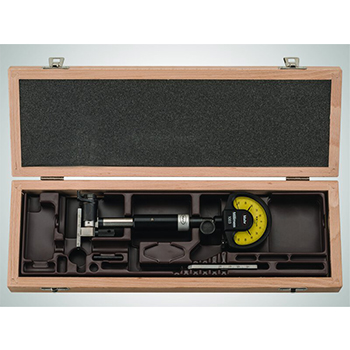

- Scope of delivery: Measuring holder, Measuring Head, Anvil spindle, Wooden case, excludes indicator.
- for blind holes, to measure almost to the base of a bore.
- 4335000 – Millimess 0.5 μm, ñ 25 μm – 1002.
- 4334000 – Millimess 1 μm, ñ 50 μm – 1003.
- 4333000 – Millimess 5 μm, ñ 130 μm – 1004.
- 4337662 – Digital Indicator, 0.0005 mm, 12.5 mm – 1087 BR.
- 4337664 – Digital Indicator, 0.0005 mm, 12.5 mm – 1087 BRi.
- 4346100 – Inductive dial comparator, ñ 0.9 μm – 2001.
Mahr MaraMeter Self Centering Dial Bore Gages – 844 NB:
- 4474179 MaraMeter
Self Centering Dial Bore Gage: 20-50mm/0.79-2″
- 4474180 MaraMeter Self Centering Dial Bore Gage: 50-110mm/2-4.33″
- 4474186 MaraMeter Self Centering
Dial Bore Gage: 110-300mm/4.33-11.81″
