Mitutoyo Bore GagesMitutoyo 04AZA943 Replacement Head Assembly: 4.00-4.50″

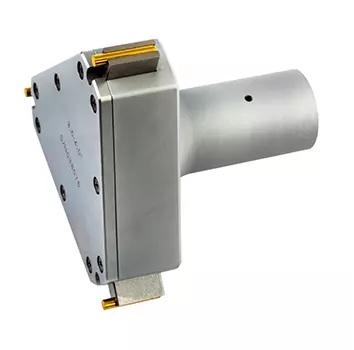

mitutoyo 04AZA943 3-point replacement head assembly measuring range 4.0-4.5

Mitutoyo 04AZA943 Replacement Head Assembly: 4.00-4.50″

Product Code: 04AZA943

MFGID: 04AZA943

Brand: Mitutoyo

Measuring Range: 4.00 - 4.50"

Description: TiN-coated measuring contact head assembly

Product Description

04AZA943 Mitutoyo Replacement Head Assembly: 4.00 – 4.50″

The Mitutoyo 04AZA943 Replacement Head Assembly has the following specifications:

Measuring Range: 4.50 – 5.00″
3-Point Contact
Contact Point Material: TiN-coating

Features:

Only compatible with the following Mitutoyo Bore Gages:
- Holtest Series 368
- Digimatic Holtest Series 468
- Borematic Series 568

The Mitutoyo 04AZA943 Replacement Head Assembly is included as a standard measuring head in the following current Mitutoyo Bore Gages:

568-474 Holtest: 4.0-4.5″/101.6-114.3mm

Adaptors are required to connect borematic head assemblies and borematic main body units. Sets and complete units include the correct adapters for the included heads, while individual heads (purchased separately) do not.

Replacement Head Assemblies: Inch

04AZB139 Replacement Head Assembly: .275 – .350″
04AZB140 Replacement Head Assembly: .350 – .425″
04AZB141 Replacement Head Assembly: .425 – .500″
04AZA721 Replacement Head Assembly: .500 – .650″
04AZA722 Replacement Head Assembly: .650 – .800″
04AZA730 Replacement Head Assembly: .800 – 1.00″
04AZA731 Replacement Head Assembly: 1.00 – 1.20″
04AZA739 Replacement Head Assembly: 1.20 – 1.60″
04AZA740 Replacement Head Assembly: 1.60 – 2.00″
04AZA754 Replacement Head Assembly: 2.00 – 2.50″
04AZA755 Replacement Head Assembly: 2.50 – 3.00″
04AZA756 Replacement Head Assembly: 3.00 – 3.50″
04AZA757 Replacement Head Assembly: 3.50 – 4.00″
04AZA943 Replacement Head Assembly: 4.00 – 4.50″
04AZA944 Replacement Head Assembly: 4.50 – 5.00″
04AZA783 Replacement Head Assembly: 4.00 – 5.00″
04AZA784 Replacement Head Assembly: 5.00 – 6.00″
04AZA785 Replacement Head Assembly: 6.00 – 7.00″
04AZA786 Replacement Head Assembly: 7.00 – 8.00″
04AZA787 Replacement Head Assembly: 8.00 – 9.00″
04AZA788 Replacement Head Assembly: 9.00 – 10.0″
04AZA789 Replacement Head Assembly: 10.0 – 11.0″
04AZA790 Replacement Head Assembly: 11.0 – 12.0″

Replacement Head Assemblies: Metric

04AZB136 Replacement Head Assembly: 6-8mm
04AZB137 Replacement Head Assembly: 8-10mm
04AZB138 Replacement Head Assembly: 10-12mm
04AZA719 Replacement Head Assembly: 12-16mm
04AZA720 Replacement Head Assembly: 16-20mm
04AZA728 Replacement Head Assembly: 20-25mm
04AZA729 Replacement Head Assembly: 25-30mm
04AZA737 Replacement Head Assembly: 30-40mm
04AZA738 Replacement Head Assembly: 40-50mm
04AZA750 Replacement Head Assembly: 50-63mm
04AZA751 Replacement Head Assembly: 62-75mm
04AZA752 Replacement Head Assembly: 75-88mm
04AZA753 Replacement Head Assembly: 87-100mm
04AZA775 Replacement Head Assembly: 100-125mm
04AZA941 Replacement Head Assembly: 100-113mm
04AZA942 Replacement Head Assembly: 112-125mm
04AZA776 Replacement Head Assembly: 125-150mm
04AZA777 Replacement Head Assembly: 150-175mm
04AZA778 Replacement Head Assembly: 175-200mm
04AZA779 Replacement Head Assembly: 200-225mm
04AZA780 Replacement Head Assembly: 225-250mm
04AZA781 Replacement Head Assembly: 250-275mm
04AZA782 Replacement Head Assembly: 275-300mm
