Steel Setting Ring # 177-302

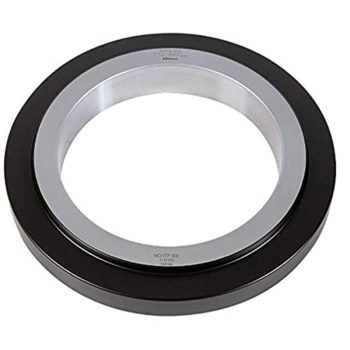

177-302 Mitutoyo Steel Setting Ring - 175mm

The Mitutoyo 177-302 Steel Setting Ring has the following specifications:

• Nominal Size: 175mm
• Tolerance Between Nominal and Actual Diameter: +/- .020mm
• Uncertainty of Marked Diameter Value: +/- .0025mm
• Roundness/Cylindricity: .0025mm
• Distance from the Side Face (H): 5.3mm
• Side of Warranted Calibration Surface (K): 27.7mm
• Outside Diameter: 260mm
• E Dimension for Type B: 215mm
• Thickness: 38.1mm
• Type: B

Features:

• Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
• If a setting ring of an optimal size is prepared, it can be used for calibration.

Steel Setting Rings - Metric:

• 177-220: Steel Setting Ring - 1mm
• 177-222: Steel Setting Ring - 1.1mm
• 177-225: Steel Setting Ring - 1.2mm
• 177-227: Steel Setting Ring - 1.3mm
• 177-230: Steel Setting Ring - 1.4mm
• 177-236: Steel Setting Ring - 1.75mm
• 177-239: Steel Setting Ring - 2mm
• 177-242: Steel Setting Ring - 2.25mm
• 177-208: Steel Setting Ring - 2.5mm
• 177-246: Steel Setting Ring - 2.75mm
• 177-248: Steel Setting Ring - 3mm
• 177-250: Steel Setting Ring - 3.25mm
• 177-252: Steel Setting Ring - 3.5mm
• 177-255: Steel Setting Ring - 3.75mm
• 177-204: Steel Setting Ring - 4mm
• 177-257: Steel Setting Ring - 4.5mm
• 177-205: Steel Setting Ring - 5mm
• 177-263: Steel Setting Ring - 5.5mm
• 177-267: Steel Setting Ring - 6mm
• 177-271: Steel Setting Ring - 6.5mm
• 177-275: Steel Setting Ring - 7mm
• 177-125: Steel Setting Ring - 8mm
• 177-279: Steel Setting Ring - 9mm
• 177-126: Steel Setting Ring - 10mm
• 177-284: Steel Setting Ring - 12mm
• 177-132: Steel Setting Ring - 14mm
• 177-177: Steel Setting Ring - 16mm
• 177-133: Steel Setting Ring - 17mm
• 177-285: Steel Setting Ring - 18mm
• 177-286: Steel Setting Ring - 20mm
• 177-139: Steel Setting Ring - 25mm
• 177-288: Steel Setting Ring - 30mm
• 177-140: Steel Setting Ring - 35mm
• 177-290: Steel Setting Ring - 40mm
• 177-178: Steel Setting Ring - 45mm
• 177-146: Steel Setting Ring - 50mm
• 177-292: Steel Setting Ring - 60mm
• 177-314: Steel Setting Ring - 62mm
• 177-147: Steel Setting Ring - 70mm
• 177-316: Steel Setting Ring - 75mm
• 177-294: Steel Setting Ring - 80mm
• 177-318: Steel Setting Ring - 87mm
• 177-148: Steel Setting Ring - 90mm
• 177-296: Steel Setting Ring - 100mm
• 177-298: Steel Setting Ring - 125mm
• 177-300: Steel Setting Ring - 150mm
• 177-302: Steel Setting Ring - 175mm
• 177-304: Steel Setting Ring - 200mm
• 177-306: Steel Setting Ring - 225mm
• 177-308: Steel Setting Ring - 250mm
• 177-310: Steel Setting Ring - 275mm
• 177-312: Steel Setting Ring - 300mm
