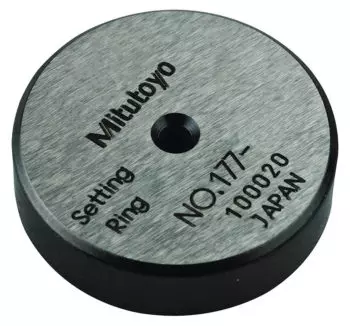

Mitutoyo 177-204 Steel Setting Ring 4mm Diameter
Product Code: 177-204MFGID: 177-204
Brand: Mitutoyo
Product Description
177-204 Mitutoyo Steel Setting Ring – 4mm
The Mitutoyo 177-204 Steel Setting Ring has the following specifications:
- Nominal Size: 4mm
- Tolerance Between Nominal and Actual Diameter: +/- .010mm
- Uncertainty of Marked Diameter Value: +/- .0015mm
- Roundness/Cylindricity: .001mm
- Distance from the Side Face (H): 1.7mm
- Side of Warranted Calibration Surface (K): 3.6mm
- Outside Diameter: 25mm
- E Dimension for Type B: N/A
- Thickness: 7mm
- Type: A
All Mitutoyo Setting Rings can be certified to NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo 177-204 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
- Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
- If a setting ring of an optimal size is prepared, it can be used for calibration.
Steel Setting Rings – Metric:
- 177-220: Steel Setting Ring – 1mm
- 177-222: Steel Setting Ring – 1.1mm
- 177-225: Steel Setting Ring – 1.2mm
- 177-227: Steel Setting Ring – 1.3mm
- 177-230: Steel Setting Ring – 1.4mm
- 177-236: Steel Setting Ring – 1.75mm
- 177-239: Steel Setting Ring – 2mm
- 177-242: Steel Setting Ring – 2.25mm
- 177-208: Steel Setting Ring – 2.5mm
- 177-246: Steel Setting Ring – 2.75mm
- 177-248: Steel Setting Ring – 3mm
- 177-250: Steel Setting Ring – 3.25mm
- 177-252: Steel Setting Ring – 3.5mm
- 177-255: Steel Setting Ring – 3.75mm
- 177-204: Steel Setting Ring – 4mm
- 177-257: Steel Setting Ring – 4.5mm
- 177-205: Steel Setting Ring – 5mm
- 177-263: Steel Setting Ring – 5.5mm
- 177-267: Steel Setting Ring – 6mm
- 177-271: Steel Setting Ring – 6.5mm
- 177-275: Steel Setting Ring – 7mm
- 177-125: Steel Setting Ring – 8mm
- 177-279: Steel Setting Ring – 9mm
- 177-126: Steel Setting Ring – 10mm
- 177-284: Steel Setting Ring – 12mm
- 177-132: Steel Setting Ring – 14mm
- 177-177: Steel Setting Ring – 16mm
- 177-133: Steel Setting Ring – 17mm
- 177-285: Steel Setting Ring – 18mm
- 177-286: Steel Setting Ring – 20mm
- 177-139: Steel Setting Ring – 25mm
- 177-288: Steel Setting Ring – 30mm
- 177-140: Steel Setting Ring – 35mm
- 177-290: Steel Setting Ring – 40mm
- 177-178: Steel Setting Ring – 45mm
- 177-146: Steel Setting Ring – 50mm
- 177-292: Steel Setting Ring – 60mm
- 177-314: Steel Setting Ring – 62mm
- 177-147: Steel Setting Ring – 70mm
- 177-316: Steel Setting Ring – 75mm
- 177-294: Steel Setting Ring – 80mm
- 177-318: Steel Setting Ring – 87mm
- 177-148: Steel Setting Ring – 90mm
- 177-296: Steel Setting Ring – 100mm
- 177-298: Steel Setting Ring – 125mm
- 177-300: Steel Setting Ring – 150mm
- 177-302: Steel Setting Ring – 175mm
- 177-304: Steel Setting Ring – 200mm
- 177-306: Steel Setting Ring – 225mm
- 177-308: Steel Setting Ring – 250mm
- 177-310: Steel Setting Ring – 275mm
- 177-312: Steel Setting Ring – 300mm
