  • Product Code: #781BXTZ-4

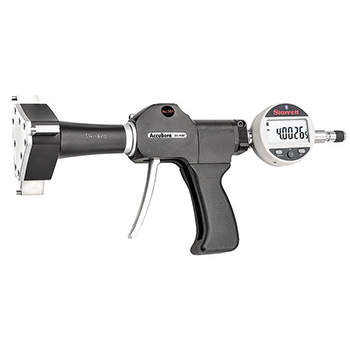

    AccuBore Pistol Grip Electronic Bore Gage # 781BXTZ-4

    Range: 3.25-4.00"/80-100mm

    Resolution: .00005"/.001mm

    Price: $3,073.00 $3,011.54
    Lowest Price Guaranteed
    Quantity

    Product Description

    781BXTZ-4 Starrett AccuBore Pistol Grip Electronic Bore Gage: 3.25-4.00"/80-100mm

    The Starrett 781BXTZ-4 AccuBore Pistol Grip Electronic Bore Gage has the following specifications:

    • Range: 3.25-4.00"/80-100mm
    • Resolution: .00005"/.001mm
    • Accuracy: 0.0002"/.005mm
    • Measuring Depth: 3.375"/85mm

    AccuBore is a high-quality, trigger-activated, two-point and three-point contact bore gaging system with extended range. Its convenient single-hand operation provides speed and control. Simply squeeze the trigger, insert the gage into the bore and release the trigger for an instant reading from the large, easy-to-read digital display. What makes AccuBore superior to other gages are features like the mechanically driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore. This provides consistent pressure, resulting in more accurate readings than models with spring-driven contacts which are subject to pressure variations. Speed and convenience are further enhanced by the repositionable AccuBore® indicator, which may be swiveled and rotated for left, right hand or even vertical viewing. The gage also features a set of "Go/No-Go" lights in the readout display that quickly indicates whether a bore measurement is within a preset tolerance.

    The Starrett 781BXTZ-4 AccuBore Pistol Grip Electronic Bore Gage is made up of the following:

    • 781BXTP-4 Electronic Pistol Grip Only with Indicator: .750-4"/20-100mm
    • Measuring Head: 3.25-4.00"/80-100mm
    • Setting Ring: 3.250"/82.55mm

    Features:

    • Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System
    • Wireless capability
    • Single-hand operation with right- and left-hand viewing flexibility
    • Large, easy-to-read display
    • Enhanced wear life with carbide-faced contacts - available from 1/2" to 8"
    • Convenient "Go/No-Go" tolerance indicator lights
    • True alignment with mechanically-driven parallel anvils
    • Push button inch/metric conversion
    • Preset and preset recall
    • Hold, max/min and zeroing capabilities
    • Blind bore measurement is standard for .50" (12.7mm) and above
    • Specialized heads available for thread, groove and other non-standard measurements on request

    Starrett 781BXT AccuBore Electronic Pistol Grip Bore Gages:

    Individual Ranges:

    • 781BXTZ-100 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .080-.100"/2.0-2.5mm
    • 781BXTZ-120 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .100-.120"/2.5-3.0mm
    • 781BXTZ-160 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .120-.160"/3-4mm
    • 781BXTZ-200 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .160-.200"/4-5mm
    • 781BXTZ-250 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .200-.250"/5-6mm
    • 781BXTZ-312 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .250-.312"/6-8mm
    • 781BXTZ-375 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .312-.375"/8-10mm
    • 781BXTZ-500 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .375-.500"/10-12.5mm
    • 781BXTZ-625 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .500-.625"/12.5-16mm
    • 781BXTZ-750 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .625-.750"/16-20mm
    • 781BXTZ-1     AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .750-1.00"/20-25mm
    • 781BXTZ-138 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 1.00-1.375"/25-35mm
    • 781BXTZ-2     AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 1.375-2.00"/35-50mm
    • 781BXTZ-258 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 2.00-2.625"/50-65mm
    • 781BXTZ-314 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 2.625-3.25"/65-80mm
    • 781BXTZ-4      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 3.25-4.00"/80-100mm
    • 781BXTZ-5      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 4.00-5.00"/100-125mm
    • 781BXTZ-6      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 5.00-6.00"/125-150mm
    • 781BXTZ-7      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 6.00-7.00"/150-175mm
    • 781BXTZ-8      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 7.00-8.00"/175-200mm

    Sets:

    • S781BXTBZ AccuBore 2-Pt Electronic Pistol Grip Bore Gage Set: .080-.250"/2-6mm
    • S781BXTCZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .250-.375"/6-10mm
    • S781BXTHZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .250-.750"/6-20mm
    • S781BXTDZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .375-.750"/10-20mm
    • S781BXTEZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .750-2.00"/20-50mm
    • S781BXTJZ  AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .750-4.00"/20-100mm
    • S781BXTFZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 2.00-4.00"/50-100mm
    • S781BXTKZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 4.00-6.00"/100-150mm
    • S781BXTGZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 4.00-8.00"/100-200mm
    • S781BXTLZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 6.00-8.00"/150-200mm
  •
