Dyer Gage 104-204 Groove Gage: 20-30mm
Product Code: 104-204-DYRMFGID: 104-204-DYR
Brand: Dyer Gage
Product Description

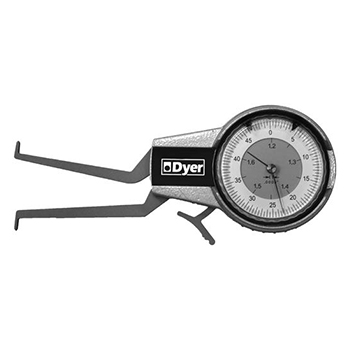

104-204 DYER GAGE Classic ID Groove Gage – 104 Series Metric: 20-30mm
The DYER GAGE 104-204 Classic ID Groove Gage – 104 Series Metric has the following specifications:
- Measuring Number Range: 20-30mm
- L Dim Reach of Arms: 61mm
- A Dim Max Depth Groove: 5.4mm
- B Dim Min Width Groove: 1.5mm
- Carbide Ball Contact Standard Ø: 1mm
- Graduation Order: 0.010mm
Features:
- Easy to use; the gage arms collapse to enter the small bore, then open into groove diameters.
- Customized standards in 1-2 days.
- Fast, accurate, repeatable measurements.
- Gage R & R capable (depends on tolerance and application). We will do Gage R & R on your part before we ship it to you.
- Hard steel alloyed arms and special machined case makes these gages light weight and shop durable. The arms are spring-loaded.
- New rack gear movement for increased accuracy and repeatability. Oil and corrosion resistant.
- Large, easy to read graduations. Gage uses a 2-pointer system.
If this caliper gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Classic ID Groove Gage – 104 Series Metric
- 104-201 Classic ID Groove Gage – 104 Series Metric 5-10mm
- 104-202 Classic ID Groove Gage – 104 Series Metric 5-15mm
- 104-203 Classic ID Groove Gage – 104 Series Metric 10-20mm
- 104-204 Classic ID Groove Gage – 104 Series Metric 20-30mm
- 104-205 Classic ID Groove Gage – 104 Series Metric 30-40mm
- 104-206 Classic ID Groove Gage – 104 Series Metric 40-50mm
