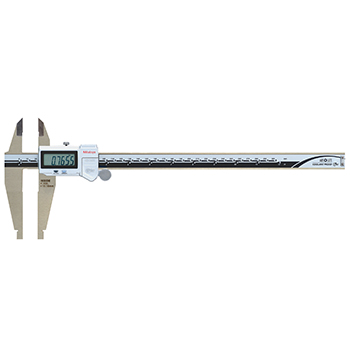

ABSOLUTE Digimatic Caliper with Nib Style and Standard Jaws # 551-341-10

551-341-10 Mitutoyo ABSOLUTE Digimatic Caliper with Nib Style and Standard Jaws: 0(.4")-12"/0(10)-300mm

The Mitutoyo 551-341-10 ABSOLUTE Digimatic Caliper has the following specifications:

• Range: 0(.4")-12"/0(10)-300mm
• Resolution: .0005"/0.01mm
• Accuracy: +/- 002"
• Mass(g): 380
• Remarks: w/ offset/preset function for easy ID measurement, IP67

Features:

• The rounded faces of the jaws are ideal for accurate ID (inside diameter) measurement.
• Parallax-free vernier scale type is available for easy and positive measurement.
• With SPC output.
• Supplied in fitted plastic holster in carton.18"/450mm and larger supplied wooden case.

Technical Data

• Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
• Resolution: 0.01mm or .0005"/0.01mm
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3.5 years under normal use

Function of Digital Model

• Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Mitutoyo ABSOLUTE Digimatic Calipers with Nib & Standard Jaws - Digital Models:

• 551-301-20 ABS Digimatic Caliper with Nib & Standard Jaws: 0(10)-200mm
• 551-331-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(10)-300mm
• 551-204-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(20)-500mm
• 551-206-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(20)-750mm
• 551-207-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(20)-1000mm

• 551-311-20 ABS Digimatic Caliper with Nib & Standard Jaws: 0(.4")-8"/0(10)-200mm
• 551-341-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(.4")-12"/0(10)-300mm
• 551-224-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(.5")-20"/0(20)-500mm
• 551-226-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(.5")-30"/0(20)-750mm
• 551-227-10 ABS Digimatic Caliper with Nib & Standard Jaws: 0(1")-40"/0(20)-1000mm
