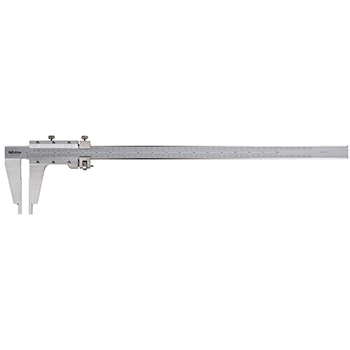

Vernier Caliper with Nib Style Jaws and Fine Adjustment # 160-116

160-116  Mitutoyo Vernier Caliper with Nib Style Jaws and Fine Adjustment: 0(.5")-18"

The Mitutoyo 160-116 Vernier Caliper with Nib Style Jaws and Fine Adjustment has the following specifications:

• Range: 0(.5")-18"
• Accuracy: +/- .002
• Graduation Lower Scale: .001"
• Graduation Upper Scale: .001"
• Mass(g): 1,200

Features:

• The jaws have round measuring faces for accurate ID measurement.
• With fine adjustment carriage to feed the slider finely. (without 160-130~134)
• Inside and outside measurements can be directly read from the upper and lower slider graduations, respectively.
• Supplied with vinyl holster in fitted carton. Except 300mm / 12", 450mm/18" and 600mm/24" are fitted carton only. Over 600mm/24" supplied in wooden case.

Mitutoyo Vernier Calipers with Nib Style Jaws and Fine Adjustments:

Metric/Metric Dual Scale - .02mm/.02mm:

• 160-127 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(10)-300mm
• 160-128 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-450mm
• 160-101 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-600mm
• 160-104 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-1000mm
• 160-110 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-1500mm
• 160-113 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-2000mm

Metric/Inch Dual Scale - .02mm/.001":

• 160-150 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(10)-300mm/0(.3")-12"
• 160-151 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-450mm/0(.5")-18"
• 160-153 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-600mm/0(.5")-24"
• 160-155 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-1000mm/0(1")-40"
• 160-157 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-1500mm/0(1")-60"
• 160-159 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(20)-2000mm/0(1")-80"

Inch/Inch Dual Scale - .001"/.001":

• 160-124 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.3")-12"
• 160-116 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.5")-18"
• 160-102 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.5")-24"
• 160-105 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-40"
• 160-111 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-60"
• 160-114 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-80"

Inch/Metric Dual Scale - .001"/.02mm:

• 160-125 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.3")-12"/0(10)-300mm
• 160-119 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.5")-18"/0(20)-450mm
• 160-103 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(.5")-24"/0(20)-600mm
• 160-106 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-40"/0(20)-1000mm
• 160-112 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-60"/0(20)-1500mm
• 160-115 Vernier Caliper Nib Style Jaws and Fine Adjustment: 0(1")-80"/0(20)-2000mm
