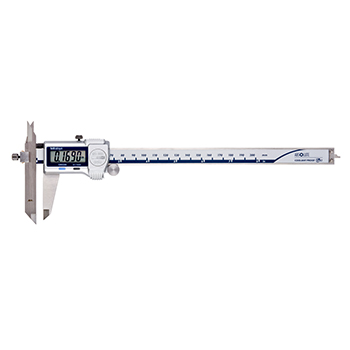

Mitutoyo 573-702-20 Digimatic Offset Caliper: 0-8″/200mm
Product Code: 573-702-20MFGID: 573-702-20
Brand: Mitutoyo
Product Description
573-702-20 Mitutoyo IP67 ABSOLUTE Digimatic Offset Caliper: 0-8″/200mm
The Mitutoyo 573-702-20 ABSOLUTE Digimatic Offset Caliper has the following specifications:
- Range: 0-8″/200mm
- Graduation: .0005″/.01mm
- Accuracy: +/- .001″
- Protection: IP67
- Mass: 198
Features:
- Main scale jaw can slide up and down to facilitate measurement of stepped sections. (Hard-to-get-at dimensions such as A, B, C can be accurately measured.)
- With depth bar.
- With SPC data output. (series 573)
- Supplied in fitted plastic case.
Technical Data
- Display: LCD
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max. response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 3.5 years under normal use
- Digital models Analog models
Function of Digital Model:
- Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
- Alarm: Low voltage, Counting value composition error
Mitutoyo IP67 Protected ABSOLUTE Digimatic Offset Calipers:
- 573-601-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-150mm
- 573-602-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-200mm
- 573-604-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-300mm
- 573-701-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-6″/150mm
- 573-702-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-8″/200mm
- 573-704-20 IP67 Protected Absolute Digimatic Offset Caliper: 0-12″/300mm
Mitutoyo Vernier Offset Calipers – Metric:
