Digimatic Carbon Fiber Caliper # 552-161-10

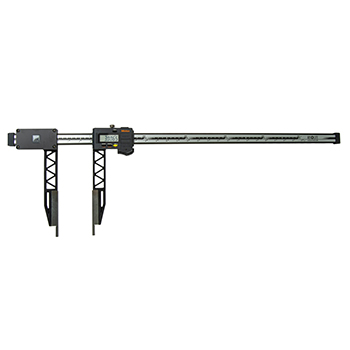

552-161-10 Mitutoyo Digimatic Carbon Fiber Caliper with Optional Jaw Attachments: 0(.5")-24"

The Mitutoyo 552-161-10 Mitutoyo Digimatic Carbon Fiber Caliper has the following specifications:

• Range: 0(.5")-24"
• Resolution: .0005"/0.01mm
• Accuracy: +/- .0025"
• Remarks: long jaws 7.9"

Features:

• Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws.
• Highly durable and easy to handle.
• The range of applications can be expanded by using the optional attachments.
• Direct readout of ID measurements from the LCD. (Offset value can be set easily by pressing the Offset key.)
• Preset function for setting a desired starting point.
• With SPC data output.
• Special model available with ceramic jaws which are suitable for measuring abrasive and magnetic products.
• Supplied in fitted wooden case.

Technical Data

• Accuracy: Refer to the list of specifications.
• Resolution: 0.01mm or .0005"/0.01mm
• Display: LCD
• Length standard: Electrostatic capacitance type linear encoder
• Max. response speed: 1600mm/s
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3,000 hours in continuous use
• *( ): Minimum dimension in ID measurement

Function

• Origin-set, Zero-setting, Presetting, Offsetting, Data hold, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Mitutoyo Digimatic Carbon Fiber Calipers with Optional Jaw Attachments - Metric:

• 552-302-10 Digimatic Caliper: 0(20)-450mm - +/-.04mm
• 552-150-10 Digimatic Caliper: 0(20)-450mm - +/-.06mm - long jaws 200mm
• 552-155-10 Digimatic Caliper: 0(20)-450mm - +/-.04mm - ceramic jaws
• 552-303-10 Digimatic Caliper: 0(20)-600mm - +/-.04mm
• 552-151-10 Digimatic Caliper: 0(20)-600mm - +/-.06mm - long jaws 200mm
• 552-156-10 Digimatic Caliper: 0(20)-600mm - +/-.04mm - ceramic jaws
• 552-304-10 Digimatic Caliper: 0(20)-1000mm - +/-.05mm
• 552-152-10 Digimatic Caliper: 0(20)-1000mm - +/-.07mm - long jaws 200mm
• 552-305-10 Digimatic Caliper: 0(20)-1500mm - +/-.09mm
• 552-153-10 Digimatic Caliper: 0(20)-1500mm - +/-.11mm - long jaws 200mm
• 552-306-10 Digimatic Caliper: 0(20)-2000mm - +/-.12mm
• 552-154-10 Digimatic Caliper: 0(20)-2000mm - +/-.14mm - long jaws 200mm

Mitutoyo Digimatic Carbon Fiber Calipers with Optional Jaw Attachments - Inch/Metric:

• 552-312-10 Digimatic Caliper: 0(.5")-18" - +/-.002"
• 552-160-10 Digimatic Caliper: 0(.5")-18" - +/-.0025" - long jaws 7.9"
• 552-165-10 Digimatic Caliper: 0(.5")-18" - +/-.002" - ceramic jaws
• 552-313-10 Digimatic Caliper: 0(.5")-24" - +/-.002"
• 552-161-10 Digimatic Caliper: 0(.5")-24" - +/-.0025" - long jaws 7.9"
• 552-166-10 Digimatic Caliper: 0(.5")-24" - +/-.002" - ceramic jaws
• 552-314-10 Digimatic Caliper: 0(1")-40" - +/-.002"
• 552-162-10 Digimatic Caliper: 0(1")-40" - +/-.003" - long jaws 7.9"
• 552-315-10 Digimatic Caliper: 0(1")-60" - +/-.004"
• 552-163-10 Digimatic Caliper: 0(1")-60" - +/-.0045" - long jaws 7.9"
• 552-316-10 Digimatic Caliper: 0(1")-80" - +/-.005"
• 552-164-10 Digimatic Caliper: 0(1")-80" -+/-.0055" - long jaws 7.9"
