  • Product Code: #530-320

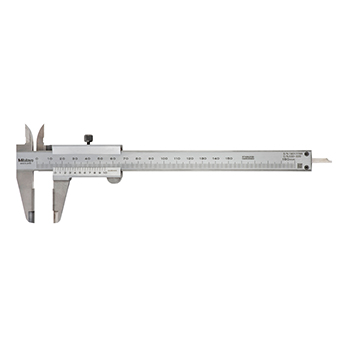

    Standard Vernier Caliper # 530-320

    Range/Size: 0-150mm

    Graduations: .02mm

    Price: $145.00 $124.70
    Lowest Price Guaranteed
    Quantity

    Product Description

    530-320 Vernier Caliper - Standard Model: 0-150mm

    The Mitutoyo 530-320 Vernier Caliper has the following specifications:

    • Range: 0-150mm
    • Accuracy: +/- 0.05mm
    • Graduation: 0.05mm
    • Remarks: Carbide-tipped jaws for OD measurement

    Features:

    • Measures OD (outside diameter), ID (inside diameter), depth, and steps.
    • The small vernier face angle (14?) provides easy reading.
    • Dual reading scales on vernier. (metric/inch and inch models only)
    • Lock screw for holding the sliding jaw position.
    • Carbide-tipped jaw type calipers are also available.
    • Supplied with vinyl holster in fitted carton. Except 600mm / 24" models are carton only. 1000mm / 40" supplied in wooden case.

    Technical Data

    • Graduation: 0.05mm, 0.05mm (1/128") or .001" (1/128")
    • High accuracy type: 0.02mm or 0.02mm (.001")

    Mitutoyo Vernier Caliper Standard Model - Metric:

    • 530-102 Vernier Caliper: 0-150mm - .05mm graduation - ?1.9 Depth Bar
    • 530-101 Vernier Caliper: 0-150mm - .05mm graduation
    • 530-320 Vernier Caliper: 0-150mm - .05mm graduation - Carbide-tipped jaws for OD measurement
    • 530-335 Vernier Caliper: 0-150mm - .05mm graduation - Carbide-tipped jaws for OD & ID measurement
    • 530-122 Vernier Caliper: 0-150mm - .02mm graduation - High-accuracy model +/-0.03mm
    • 530-108 Vernier Caliper: 0-150mm - .05mm graduation
    • 530-321 Vernier Caliper: 0-200mm - .05mm graduation - Carbide-tipped jaws for OD measurement
    • 530-123 Vernier Caliper: 0-200mm - .02mm graduation - High-accuracy model
    • 530-109 Vernier Caliper: 0-300mm - .05mm graduation
    • 530-322 Vernier Caliper: 0-300mm - .05mm graduation - Carbide-tipped jaws for OD measurement
    • 530-124 Vernier Caliper: 0-300mm - .02mm graduation - High-accuracy model +/-0.04mm
    • 530-501 Vernier Caliper: 0-600mm - .05mm graduation
    • 530-502 Vernier Caliper: 0-1000mm - .05mm graduation

    Mitutoyo Vernier Caliper Standard Model - Metric/Inch Dual Scale:

    • 530-104 Vernier Caliper: 0-150mm/0-6"
    • 530-316 Vernier Caliper: 0-150mm/0-6"
    • 530-312 Vernier Caliper: 0-150mm/0-6"
    • 530-114 Vernier Caliper: 0-200mm/0-8"
    • 530-118 Vernier Caliper: 0-200mm/0-8"
    • 530-115 Vernier Caliper: 0-300mm/0-12"
    • 530-119 Vernier Caliper: 0-300mm/0-12"

    Mitutoyo Vernier Caliper Standard Model - Inch/Inch Dual Scale:

  •
