Standard Vernier Caliper # 530-108

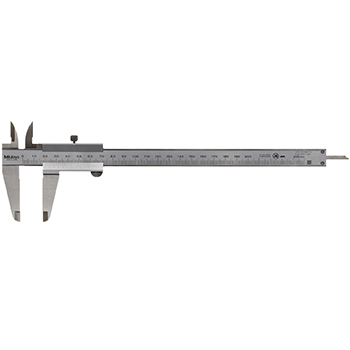

530-108 Vernier Caliper - Standard Model: 0-200mm

The Mitutoyo 530-108 Vernier Caliper has the following specifications:

• Range: 0-200mm
• Accuracy: +/- 0.05mm
• Graduation: 0.05mm
• Remarks: --

Features:

• The small vernier face angle (14°) provides easy reading.
• Dual reading scales on vernier. (metric/inch and inch models only)
• Lock screw for holding the sliding jaw position.
• Carbide-tipped jaw type calipers are also available.
• Supplied with vinyl holster in fitted carton. Except 600mm / 24" models are carton only. 1000mm / 40" supplied in wooden case.

Technical Data

• Graduation: 0.05mm, 0.05mm (1/128") or .001" (1/128")
• High accuracy type: 0.02mm or 0.02mm (.001")

Mitutoyo Vernier Caliper Standard Model - Metric:

• 530-102 Vernier Caliper: 0-150mm
• 530-101 Vernier Caliper: 0-150mm
• 530-320 Vernier Caliper: 0-150mm
• 530-335 Vernier Caliper: 0-150mm
• 530-122 Vernier Caliper: 0-150mm
• 530-108 Vernier Caliper: 0-150mm
• 530-321 Vernier Caliper: 0-200mm
• 530-123 Vernier Caliper: 0-200mm
• 530-109 Vernier Caliper: 0-300mm
• 530-322 Vernier Caliper: 0-300mm
• 530-124 Vernier Caliper: 0-300mm
• 530-501 Vernier Caliper: 0-600mm
• 530-502 Vernier Caliper: 0-1000mm

Mitutoyo Vernier Caliper Standard Model - Metric/Inch Dual Scale:

• 530-104 Vernier Caliper: 0-150mm/0-6"
• 530-316 Vernier Caliper: 0-150mm/0-6"
• 530-312 Vernier Caliper: 0-150mm/0-6"
• 530-114 Vernier Caliper: 0-200mm/0-8"
• 530-118 Vernier Caliper: 0-200mm/0-8"
• 530-115 Vernier Caliper: 0-300mm/0-12"
• 530-119 Vernier Caliper: 0-300mm/0-12"

Mitutoyo Vernier Caliper Standard Model - Inch/Inch Dual Scale:

• 530-105 Vernier Caliper: 0-6"
• 530-116 Vernier Caliper: 0-8"
