  • Product Code: #128-103

    Depth Micrometer # 128-103

    Range/Size: 0-25mm

    Graduations: .01mm

    Price: $156.00 $134.16
    Lowest Price Guaranteed
    Quantity

    Product Description

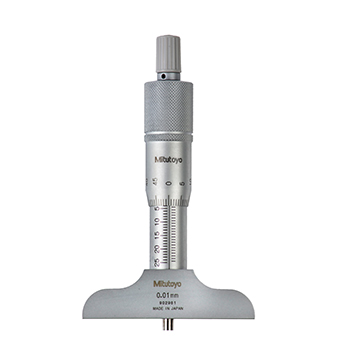

    128-103 Mitutoyo Depth Micrometer: 0-25mm

    The Mitutoyo 128-103 depth micrometer has the following specifications:

    • Range: 0-25mm
    • Graduations: .001"
    • Base Length: 63.5 x 16mm

    Features:

    • Ratchet stop ensures greater repeatability among users
    • .157"/4mm diameter measuring rod
    • With measuring rod clamp.
    • Carbide-tipped measuring rod model is available in the metric versions

    Technical Data:

    • Accuracy: ±3µm for micrometer head feed
    • Flatness of reference face: 1.3 microns for 63.5mm width base, 2 microns for 101.6mm width base
    • Flatness of measuring rod face: 0.3 microns
    • Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)

    Mitutoyo 128 Series Depth Gages - Metric:

    • 128-101 Depth Micrometer: 0-25mm - Base Length: 63.5mm
    • 128-102 Depth Micrometer: 0-25mm - Base Length: 101.6mm
    • 128-103 Carbide Tipped Depth Micrometer: 0-25mm - Base Length: 63.5mm
    • 128-104 Carbide Tipped Depth Micrometer: 0-25mm - Base Length: 101.6mm

    Mitutoyo 128 Series Depth Gages - Inch:

    • 128-105 Depth Micrometer: 0-1" - Base Length: 2.5"
    • 128-106 Depth Micrometer: 0-1" - Base Length: 4.0"
  •
