A global distributor of precision measurement tools
  • Product Code: #445DZ-9RL

    Depth Micrometer # 445DZ-9RL

    Range: 0-9"

    Graduations: .001"

    Price: $499.00 $469.06
    Lowest Price Guaranteed
    Quantity

    Product Description

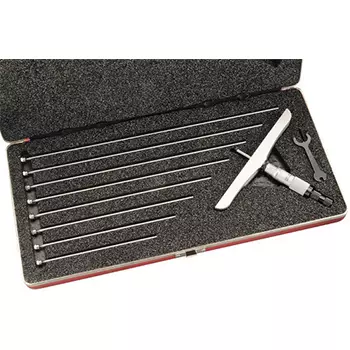

    445DZ-9RL Starrett Depth Micrometer with Ratchet/Speeder Combo: 0-9"

    The Starrett 445DZ-9RL Depth Micrometer has the following specifications:

    • Range: 0-9"
    • Graduation: .001"
    • Micrometer Head Accuracy: +/- .0001"
    • Rod Accuracy: +/- .0002"
    • Base Length: 6"
    • Number of Rods: 9
    • Rod Diameter: 5/32"
    • Lock Nut Type: Ring Type Knurled
    • Thimble Type: Ratchet
    • EDP: 52252

    Features:

    • Made in USA
    • The depths of holes, slots, shoulders and projections can be measured with these fine tools
    • Combination ratchet and speeder for uniform pressure and quicker adjustment
    • Ring-type knurled lock nut for quick and sure locking
    • Satin chrome reading surface is glare free and resists rust

    Starrett 445 Series Depth Micrometers - Inch:

    • 445AZ-3RL  Depth Micrometer: 0-3" (3" Base)
    • 445BZ-3RL  Depth Micrometer: 0-3" (4" Base)
    • 445DZ-3RL  Depth Micrometer: 0-3" (6' Base)
    • 445AZ-6RL  Depth Micrometer: 0-6" (3" Base)
    • 445BZ-6RL  Depth Micrometer: 0-6" (4" Base)
    • 445DZ-6RL  Depth Micrometer: 0-6" (6" Base)
    • 445AZ-9RL   Depth Micrometer: 0-9" (3" Base)
    • 445BZ-9RL   Depth Micrometer: 0-9" (4" Base)
    • 445DZ-9RL  Depth Micrometer: 0-9" (6" Base)

    Replacement depth rods for the Starrett 445DZ-9RL Depth Micrometer:

    • PT99341 Replacement Depth Rod for 445 Series Depth Mics: 0-1"
    • PT99342 Replacement Depth Rod for 445 Series Depth Mics: 1-2"
    • PT99343 Replacement Depth Rod for 445 Series Depth Mics: 2-3"
    • PT99344 Replacement Depth Rod for 445 Series Depth Mics: 3-4"
    • PT99345 Replacement Depth Rod for 445 Series Depth Mics: 4-5"
    • PT99346 Replacement Depth Rod for 445 Series Depth Mics: 5-6"
    • PT99347 Replacement Depth Rod for 445 Series Depth Mics: 6-7"
    • PT99348 Replacement Depth Rod for 445 Series Depth Mics: 7-8"
    • PT99349 Replacement Depth Rod for 445 Series Depth Mics: 8-9"
  •
