PRODUCT CODE: 449MAZ-75R

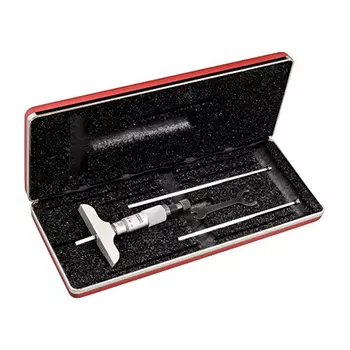

Depth Micrometers with Non-Rotating Blades – Metric (449M)

Range: 0-75mm

Graduations: .01mm

Price: $366 $344.04
Lowest Price Guaranteed
Quantity

Product Description

449MAZ-75R Starrett Depth Micrometer with Non-Rotating Spindle Blades: 0-75mm

The Starrett 449MAZ-75R Depth Micrometer with Non-Rotating Blades has the following specifications:

  • Range: 0-75mm
  • Graduations: .01mm
  • Mic Head Accuracy: +/- .0025mm
  • Rod Accuracy: +/- .005mm
  • Base Length: 63.5mm
  • Number of Rods Included: 3
  • Blade/Rod Size: 1.2mm x 3.2mm Wide
  • Lock Nut Type: Plain
  • Thimble Type: Ratchet
  • EDP: 56636

The Starrett 449, 449M Series Micrometer Depth Gage with Non-Rotating Blade includes a .045″ thick x 1/8″ wide (1.2 x 3.2mm) blade that can be turned with the fingers and positioned at any angle relative to the base. In operation, the blade does not turn, but moves perpendicularly only, permitting depth measurement of narrow shoulders without the blade rolling off. This is also ideal for slots and recesses as narrow as .045″ (1.2mm).

Features:

  • Made in America
  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • Non-rotating blade: blade does not turn, but moves perpendicularly only
  • 2-1/2″(63mm) or 4″(100mm) Bases Available
  • .045″ thick x 1/8″ wide (1.2 x 3.2mm) blade
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking

Starrett 449 and 449M Series Depth Micrometers with Non-Rotating Blades:

  • 449AZ-3R Depth Micrometer with Non-Rotating Blades: 0-3″ (2.5″ Base)
  • 449BZ-3R Depth Micrometer with Non-Rotating Blades: 0-3″ (4.0″ Base)
  • 449AZ-6R Depth Micrometer with Non-Rotating Blades: 0-6″ (2.5″ Base)
  • 449BZ-6R Depth Micrometer with Non-Rotating Blades: 0-6″ (4.0″ Base)
  • 449MAZ-75R   Depth Micrometer with Non-Rotating Blade: 0-75mm (63.5mm Base)
  • 449MBZ-75R   Depth Micrometer with Non-Rotating Blade: 0-75mm (100mm Base)
  • 449MAZ-150R Depth Micrometer with Non-Rotating Blade: 0-150mm (63.5mm Base)
  • 449MBZ-150R Depth Micrometer with Non-Rotating Blade: 0-150mm (100mm Base)

Replacement Non-Rotating Blades for the Starrett 449MAZ-75R Depth Micrometer:

  • PT99306 Replacement Non-Rotating Blade: 0-25mm
  • PT99307 Replacement Non-Rotating Blade: 25-50mm
  • PT99308 Replacement Non-Rotating Blade: 50-75mm
