  • Product Code: #4413050

    Indicator Stand - # 4413050

    Total height with base: 300mm/12"

    Max. projection of support arm: 185mm

    Price: $596.00 $590.00
    Lowest Price Guaranteed
    Quantity

    Product Description

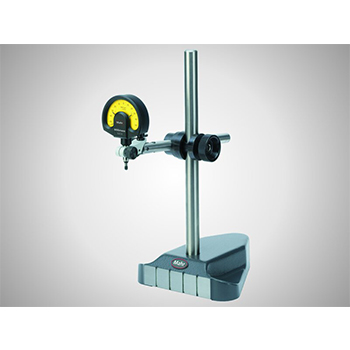

    4413050 Mahr Indicator Stand - 815 GN: 300mm/12"

    The Mahr 4413050 Indicator Stand - 815 GN has the following specifications:

    • Total height with base: 300mm/12"
    • Max. projection of support arm: 185mm
    • Post Diameter - c/d: 18/14mm
    • Base Surface: 150x150mm
    • Fine Adjustment Range: 2mm
    • Weight: 4.5kg

    Features:

    • Rugged base ensures both maximum stability and sturdiness
    • The upper side of the base has a convenient hand grip
    • Moves easily over surfaces without vibration
    • Front of the base is ground to allow movement of the stand along edges and rules
    • Stable due to the three point support
    • Support arm can be finely adjusted
    • Post and support arm are made from stainless steel
    • Indicator can be rotated through ± 90°

    Mahr Indicator Stands - 815 GN:

    • 4413000 Indicator Stand: 300mm/12" (Mount Dia. 8H7)
    • 4413001 Indicator Stand: 500mm/20" (Mount Dia. 8H7)
    • 4413005 Indicator Stand: 700mm/30" (Mount Dia. 8H7)
    • 4413050 Indicator Stand: 300mm/12" (Mount Dia. 3/8")
    • 4413051 Indicator Stand: 500mm/20" (Mount Dia. 3/8")
    • 4413052 Indicator Stand: 700mm/ 30" (Mount Dia. 3/8")
  •
