  • Product Code: #516-342-26

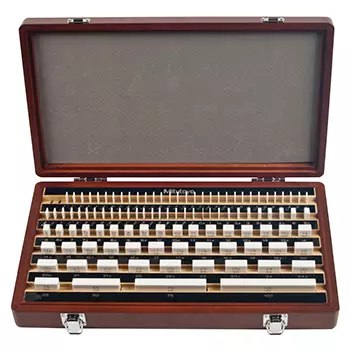

    103 Piece Grade 0 Ceramic Rectangular Gage Block Set # 516-342-26

    Blocks Per Set: 103

    Grade: 0

    Price:
    Lowest Price Guaranteed

    Product Description

    516-342-26 Mitutoyo 103 Piece Ceramic Rectangular Gage Block Set: Grade 0

    The Mitutoyo 516-342-26 rectangular ceramic gage block set has the following specifications:

    • Number of Blocks: 103 Pieces
    • Grade: 0
    • Material: Ceramic

    The 103 Piece Rectangular Gage Block Set is made up of the following blocks:

    • 1 Block: 1.005mm
    • 49 Blocks: 1.01-1.49mm (.01mm)
    • 49 Blocks: 0.5-24.5mm (.5mm)
    • 4 Blocks: 25-100mm (25mm)

    Features:

    • Ceramic blocks are adopted for frequently-used blocks. Ceramic gage blocks will last longer than steel gage blocks as well as not corrode.
    • Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
    • High-carbon, high-chrome steel provides high hardness and wear resistance
    • Rectangular base for accurate wringing
    • Nominal length indicated with laser-etched, black characters
    • Identification number etched in block for traceability

    A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.

    Mitutoyo Ceramic Rectangular Gage Block Sets - Metric:

    • 516-541-56 Ceramic 112-Piece Rectangular Gage Block Set: Grade K
    • 516-337-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade 00
    • 516-338-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade 0
    • 516-339-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-340-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade AS-2
    • 516-542-56 Ceramic 103-Piece Rectangular Gage Block Set: Grade K
    • 516-341-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade 00
    • 516-342-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade 0
    • 516-343-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-344-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade AS-2
    • 516-543-56 Ceramic 87-Piece Rectangular Gage Block Set: Grade K
    • 516-345-26 Ceramic 87-Piece Rectangular Gage Block Set: Grade 00
    • 516-346-26 Ceramic 87-Piece Rectangular Gage Block Set: Grade 0
    • 516-347-26 Ceramic 87-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-348-26 Ceramic 87-Piece Rectangular Gage Block Set: Grade AS-2
    • 516-544-56 Ceramic 56-Piece Rectangular Gage Block Set: Grade K
    • 516-353-26 Ceramic 56-Piece Rectangular Gage Block Set: Grade 00
    • 516-354-26 Ceramic 56-Piece Rectangular Gage Block Set: Grade 0
    • 516-355-26 Ceramic 56-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-356-26 Ceramic 56-Piece Rectangular Gage Block Set: Grade AS-2
    • 516-545-56 Ceramic 47-Piece Rectangular Gage Block Set: Grade K
    • 516-357-26 Ceramic 47-Piece Rectangular Gage Block Set: Grade 00
    • 516-358-26 Ceramic 47-Piece Rectangular Gage Block Set: Grade 0
    • 516-359-26 Ceramic 47-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-360-26 Ceramic 47-Piece Rectangular Gage Block Set: Grade AS-2
  •
