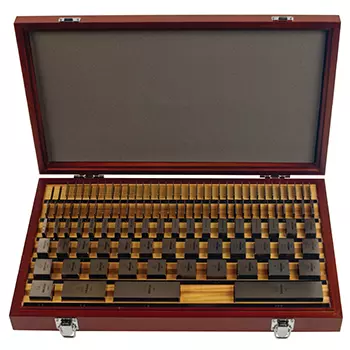

Mitutoyo 516-438-26 112 Piece Square Gage Block Set: 0
Product Code: 516-438-26MFGID: 516-438-26
Brand: Mitutoyo
Product Description
516-438-26 Mitutoyo 112 Piece Steel Square Gage Block Set: Grade 0
The Mitutoyo 516-438-26 steel gage block set has the following specifications:
- Number of Blocks: 112 Pieces
- Grade: 0
- Material: Steel
The 112 Piece Square Gage Block Set is made up of the following blocks:
- 1 Block: 1.0005mm
- 9 Blocks: 1.001-1.009mm (.001mm)
- 49 Blocks: 1.01-1.49mm (.01mm)
- 49 Blocks: 0.5-24.5mm (.5mm)
- 4 Blocks: 25-100mm (25mm)
Features:
- Perfect wringing is possible using the center hole. After wringing the square gage blocks, an optional tie rod can be inserted through the center hole to fix the blocks using a screw.
- A height reference standard can easily be made. A precision height reference standard can be made easily and inexpensively using accessories such as the plain jaw and block base.
- A dedicated inspection jig can be easily made up. A dedicated inspection jig for periodic inspection of instruments can be made easily and inexpensively.
A square gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.
Mitutoyo Steel Square Gage Block Sets – Metric:
- 516-437-26 Steel 112-Piece Square Gage Block Set: Grade 00
- 516-438-26 Steel 112-Piece Square Gage Block Set: Grade 0
- 516-439-26 Steel 112-Piece Square Gage Block Set: Grade AS-1
- 516-440-26 Steel 112-Piece Square Gage Block Set: Grade AS-2
- 516-441-26 Steel 103-Piece Square Gage Block Set: Grade 00
- 516-442-26 Steel 103-Piece Square Gage Block Set: Grade 0
- 516-443-26 Steel 103-Piece Square Gage Block Set: Grade AS-1
- 516-444-26 Steel 103-Piece Square Gage Block Set: Grade AS-2
- 516-449-26 Steel 76-Piece Square Gage Block Set: Grade 00
- 516-450-26 Steel 76-Piece Square Gage Block Set: Grade 0
- 516-451-26 Steel 76-Piece Square Gage Block Set: Grade AS-1
- 516-452-26 Steel 76-Piece Square Gage Block Set: Grade AS-2
- 516-457-26 Steel 47-Piece Square Gage Block Set: Grade 00
- 516-458-26 Steel 47-Piece Square Gage Block Set: Grade 0
- 516-459-26 Steel 47-Piece Square Gage Block Set: Grade AS-1
- 516-460-26 Steel 47-Piece Square Gage Block Set: Grade AS-2
- 516-465-26 Steel 32-Piece Square Gage Block Set: Grade 00
- 516-466-26 Steel 32-Piece Square Gage Block Set: Grade 0
- 516-467-26 Steel 32-Piece Square Gage Block Set: Grade AS-1
- 516-468-26 Steel 32-Piece Square Gage Block Set: Grade AS-2
