  • Product Code: #516-465-26

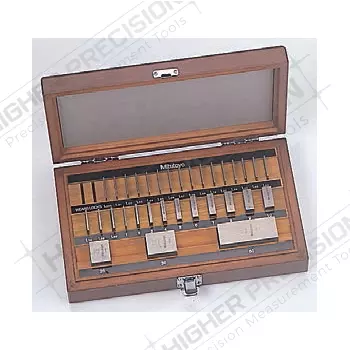

    32 Piece Grade 0 Steel Square Gage Block Set # 516-465-26

    Blocks Per Set: 32

    Grade: 00

    Price: $2,950.00 $2,537.00
    Lowest Price Guaranteed
    Quantity

    Product Description

    516-465-26 Mitutoyo 32 Piece Steel Square Gage Block Set: Grade 00

    The Mitutoyo 516-465-26 steel gage block set has the following specifications:

    • Number of Blocks: 32 Pieces
    • Grade: 00
    • Material: Steel

    The 32 Piece Square Gage Block Set is made up of the following blocks:

    • 1 Block: 1.005mm
    • 9 Blocks: 1.01-1.09mm (.01mm)
    • 9 Blocks: 1.1-1.9mm (.1mm)
    • 9 Blocks: 1-9mm (1mm)
    • 3 Blocks: 10-30mm (10mm)
    • 1 Block: 60mm

    Features:

    • Perfect wringing is possible using the center hole. After wringing the square gage blocks, an optional tie rod can be inserted through the center hole to fix the blocks using a screw.
    • A height reference standard can easily be made. A precision height reference standard can be made easily and inexpensively using accessories such as the plain jaw and block base.
    • A dedicated inspection jig can be easily made up. A dedicated inspection jig for periodic inspection of instruments can be made easily and inexpensively.

    A square gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.

    Mitutoyo Steel Square Gage Block Sets - Metric:

    • 516-437-26 Steel 112-Piece Square Gage Block Set: Grade 00
    • 516-438-26 Steel 112-Piece Square Gage Block Set: Grade 0
    • 516-439-26 Steel 112-Piece Square Gage Block Set: Grade AS-1
    • 516-440-26 Steel 112-Piece Square Gage Block Set: Grade AS-2
    • 516-441-26 Steel 103-Piece Square Gage Block Set: Grade 00
    • 516-442-26 Steel 103-Piece Square Gage Block Set: Grade 0
    • 516-443-26 Steel 103-Piece Square Gage Block Set: Grade AS-1
    • 516-444-26 Steel 103-Piece Square Gage Block Set: Grade AS-2
    • 516-449-26 Steel 76-Piece Square Gage Block Set: Grade 00
    • 516-450-26 Steel 76-Piece Square Gage Block Set: Grade 0
    • 516-451-26 Steel 76-Piece Square Gage Block Set: Grade AS-1
    • 516-452-26 Steel 76-Piece Square Gage Block Set: Grade AS-2
    • 516-457-26 Steel 47-Piece Square Gage Block Set: Grade 00
    • 516-458-26 Steel 47-Piece Square Gage Block Set: Grade 0
    • 516-459-26 Steel 47-Piece Square Gage Block Set: Grade AS-1
    • 516-460-26 Steel 47-Piece Square Gage Block Set: Grade AS-2
    • 516-465-26 Steel 32-Piece Square Gage Block Set: Grade 00
    • 516-466-26 Steel 32-Piece Square Gage Block Set: Grade 0
    • 516-467-26 Steel 32-Piece Square Gage Block Set: Grade AS-1
    • 516-468-26 Steel 32-Piece Square Gage Block Set: Grade AS-2
  •
