Mitutoyo Gage BlocksMitutoyo 516-544-56 56-Pc Cera Rect. Gage Block Set: Grade K

Mitutoyo 516-544-56 56-Pc Cera Rect. Gage Block Set: Grade K

Name: 516-544-56 Mitutoyo 56-Pc Cera Rect. Gage Block Set: Grade K - Call 800-469-0132 or Buy Online
SKU: 516-544-56

Product Code: 516-544-56

MFGID: 516-544-56

Brand: Mitutoyo

Blocks Per Set: 56

Grade: K

Request Quote

Product Description

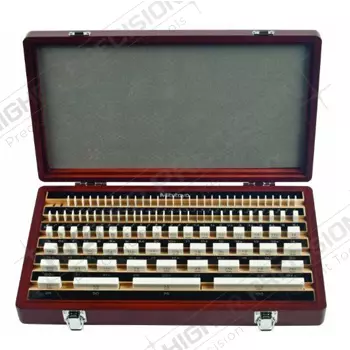

516-544-56 Mitutoyo 56 Piece Ceramic Rectangular Gage Block Set: Grade K

The Mitutoyo 516-544-56 rectangular ceramic gage block set has the following specifications:

Number of Blocks: 56 Pieces

Grade: K

Material: Ceramic

The 56 Piece Rectangular Gage Block Set is made up of the following blocks:

1 Block: 0.5mm

9 Blocks: 1.001-1.009 (.001mm)

9 Blocks: 1.01-1.09mm (.01mm)

9 Blocks: 1.1-1.9mm (.1mm)

24 Blocks: 1-24mm (1mm)

4 Blocks: 25-100mm (25mm)

Features:

Ceramic blocks are adopted for frequently-used blocks. Ceramic gage blocks will last longer than steel gage blocks as well as not corrode.

Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish

High-carbon, high-chrome steel provides high hardness and wear resistance

Rectangular base for accurate wringing

Nominal length indicated with laser-etched, black characters

Identification number etched in block for traceability

A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.

Mitutoyo Ceramic Rectangular Gage Block Sets – Metric:

516-541-56 Ceramic 112-Piece Rectangular Gage Block Set: Grade K

516-337-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade 00

516-338-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade 0

516-339-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade AS-1

516-340-26 Ceramic 112-Piece Rectangular Gage Block Set: Grade AS-2

516-542-56 Ceramic 103-Piece Rectangular Gage Block Set: Grade K

516-341-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade 00

516-342-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade 0

516-343-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade AS-1

516-344-26 Ceramic 103-Piece Rectangular Gage Block Set: Grade AS-2

516-543-56 Ceramic 87-Piece Rectangular Gage Block Set: Grade K
