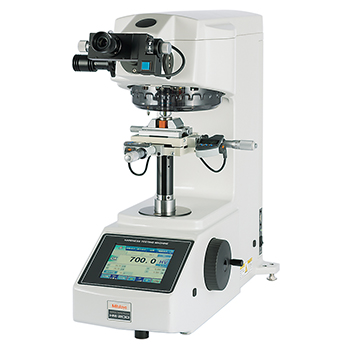

Mitutoyo 64AAB305P Micro Vickers Hardness Testing
Product Code: 64AAB305PMFGID: 64AAB305P
Brand: Mitutoyo
Product Description
64AAB305P Mitutoyo Micro Vickers Hardness Testing HM-210: Vickers
The Mitutoyo 64AAB305P Micro Vickers Hardness Testing HM-210 has the following specifications:
- Indenter: Vickers
- Fixed test force: 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)
- Test force range:
- HM-210A: 9 steps + arbitrary test force
- HM-220A: 19 steps + arbitrary test force
- Load dwell time: 0 – 999s
- Manual XY stage unit
- Stage size: 100x100mm
- Travel range: 25x25mm
- with Digimatic in/mm micrometer heads
- Resolution: 0.001mm
- Max. specimen height: 133mm (Stage size: 25 x 25mm)
- Max. specimen height: 121mm (Stage size: 50 x 50mm)
- Max. specimen depth: 160mm (from the center of indenter)
- Optical path: 4-port objectives switching system of Infinity-correction optical system
- Resolution: 0.01?m (When using objectives of X40 or more)
- Data output: Serial interface (RS-232),
- Digimatic interface, USB 2.0
- Power supply: 39VA 100-125/220-240V AC, 50/60Hz
- Dimensions: (W x D x H): 315x671x595mm
- Mass: 43kg
Features:
- The electromagnetic force motor used in the loading mechanism enables the test force to be freely selected (see test force specifications) over the wide range of 0.4903mN to 19610mN (0.05gf to 2 kgf). It is also possible to freely set load dwell times. Now your desire for absolute control over the indentation size in Vickers hardness testing can be satisfied. The HM-200 series always offers the test force most appropriate for the specimen material and shape.
- The 64AAB305P used a long working distance objectives to enable a very comfortable working distance between the objective and the specimen surface. This, greatly reduces the possibility of collision between the specimen and the objective during focusing operations. (e.g. for 50X objectives: 1.1mm for conventional models, 2.5mm for HM-200 series)
- Newly-designed ?MH Plan? objectives are optimized for measuring indentation images. The lineup includes 6 types of long working distance objectives: 10X, 20X, 50X and 100X for measuring indentation images, and 2X and 5X for enabling wide-range measurement around indentations.
- LEDs, which have a longer life, produce less heat, consume less power and are more energy efficient than incandescent bulbs, are employed for the illumination system.
- The motorized turret allows for up to 4 objective lenses and 2 indenter assemblies to be mounted at the same time.
HM210 Micro Vickers Hardness Testing Machines
- 64AAB305P Micro Vickers Hardness Testing Machine: Indenter Vickers
- 64AAB306P Micro Vickers Hardness Testing Machine: Indenter Vickers and Knoop
HM220 Micro Vickers Hardness Testing Machines
