Product Description

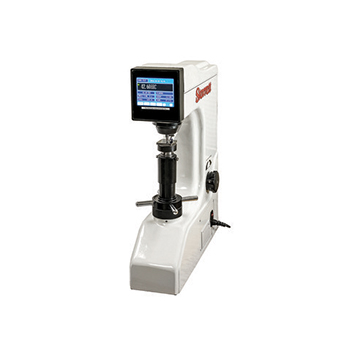

3816B Starrett Digital Bench Hardness Tester
The Starrett 3816B Digital Bench Hardness Tester has the following specifications:
- Minor Load: 10Kgf
- Major Load: A: 60Kgf, B: 100Kgf, C: 150Kgf
- Test Force Application: (Dead weight applies test force)
- Test Force Control: Motorized
- Results Display: Hi-def LCD digital readout
- Throat Depth: 6.50″/165mm
- Maximum Test Height: 6.87″/175mm (Requires bench alteration)
- Unit Height/Width/Depth: 28x 8.9 x 20.6″ / 711 x 226 x 523mm
- Unit Weight: 187lbs/85kgs
- EDP: 72972
- Accessories for hardness tester at bottom of the page
The 3816B Bench Hardness Tester offers easy, fully automated testing procedures and provides highly sensitive and accurate readings. The 3816B measures the full regular Rockwell Scales according to ASTM and SAE guidelines and accommodates all types of hard or soft metals and alloys, in numerous configurations. The tester is furnished with a diamond indentor, a 1/16″ (1.6mm) ball indentor, three certified test blocks, four test tables � 5.87″ (149mm) and 2.5″ (63.5mm) flat anvils, 5/8″ (15.9mm) spot anvil and a standard vee anvil. The gage and it�s accessories also comes furnished with an accessory case.
Features:
- Fully automated routines reduce operator involvement and speeds measurements
- Large touch screen display
- Programmable scale conversions, dwell times and sample counter
- Sample averaging is automatically calculated
- RS232C output
- Built in mini-printer for outputting readings
- USB output
Digital Bench Hardness Tester Accessories
