Mitutoyo Hardness TestersMitutoyo 811-332-10 Digital Hardmatic HH-300: HA: 10 – 90

Mitutoyo 811-332-10 Digital Hardmatic HH-300: HA: 10 – 90

Name: 811-332-10 Mitutoyo Digital Hardmatic HH-300: HA: 10 - 90 - Call 800-469-0132 or Buy Online
SKU: 811-332-10
Price: 1309.77 USD
Availability: InStock

Product Code: 811-332-10

MFGID: 811-332-10

Brand: Mitutoyo

Range: HA: 10 - 90

Resolution: 0.1

Product Description

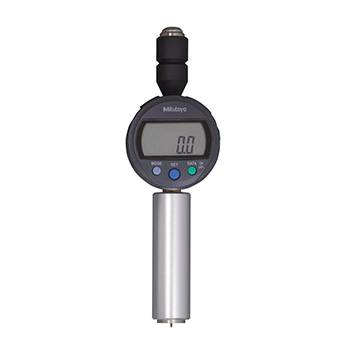

811-332-10 Mitutoyo Digital Hardmatic HH-300 – HA: 10 – 90

The Mitutoyo 811-332-10 Digital Hardmatic HH-300 has the following specifications:

Model No. Digital: HH-332
Scale Shore: A
Applications: Natural rubber, soft elastomers, etc.
Resolution: 0.1 (digital)
Range HA: 10 – 90
Standards: ASTM D 2240 Yes
ISO 868: Yes
ISO 7619: Yes
DIN 53 505: Yes
JIS K 6253: Yes
JIS K 7215: Yes
Pressure foot: ?18mm
Spring force (mN): WA=550+75HD (HA:Reading 10-90)
Indenter: Blunt taper (Tip diameter: 0.79mm)
Tip angle: 35?+/-0.25?
Indenter diameter: 1.25mm
Indenter protrusion: 2.5mm
Functions Digital: Data hold, Zero -setting, SPC output, Power ON/OFF (Power supply: SR44 x 1pc.) Analog Durometer: Peak retaining hand
Type: Long-leg
Dimensions (WxDxH) Digital: 60 x 28.5 x 193mm
Mass Digital: 310g

Features:

Digital / Dial Durometers are suitable for testing the nature of the following materials – natural rubber, neoprene, polyesters, P.V.C., leather, nitrite rubber, wax, vinyl, cellulose acetates, glass polystyrene, etc.
Units are available in both Shore A and Shore D scales, and will test a wide variety of applications
The Digital Durometer is provided with data hold function, permitting the operator to make an error-free reading on the LCD screen
The Dial Durometer is provided with a peak retaining hand for error-free reading

Digital Hardmatic HH-300 Durometers – Scale, Range, Standards Included, and Type Below

Scale: Shore E – Range HA: 10 – 90

811-330-10 Hardmatic: JIS K 6253 (Compact)

Scale: Shore A – Range HA: 10 – 90

811-336-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, JIS K 6253 & 7215 (Compact)
811-336-11 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Compact)
811-332-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Long-Leg)

Scale: Shore D – Range HA: 20 – 90

811-338-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, JIS K 6253 & 7215 (Compact)
811-338-11 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Compact)
811-334-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Long-Leg)

Dial Hardmatic HH-300 Durometers – Scale, Range, Standards Included, and Type Below

Scale: Shore E – Range HA: 10 – 90

811-329-10 Hardmatic: JIS K 6253 (Compact)

Scale: Shore A – Range HA: 10 – 90

811-335-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, JIS K 6253 & 7215 (Compact)
811-335-11 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Compact)
811-331-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Long-Leg)

Scale: Shore D – Range HA: 20 – 90

811-337-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, JIS K 6253 & 7215 (Compact)
811-337-11 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Compact)
811-333-10 Hardmatic: ASTM D 2240, ISO 868 & 7619, DIN 53 505, JIS K 6253 & 7215 (Long-Leg)
