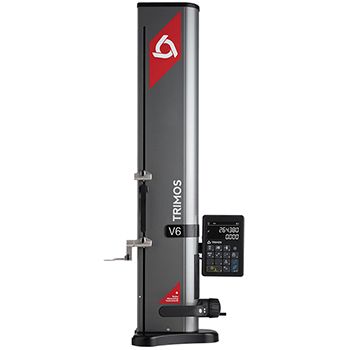

Fowler 54-199-670 V6 Electronic Height Gage: 28″/711mm
Product Code: 54-199-670MFGID: 54-199-670
Brand: Fowler
Product Description
54-199-670 Fowler V6 Electronic Height Gage: 0-28″/711mm
The Fowler 54-199-670 V6 Electronic Height Gage has the following specifications:
- Measuring Range: 0-28″/711mm
- Range with Probe inverted: 40.2″/1023mm
- Max. Permissible Errors (um): 2 + L(mm)/400
- Frontal Squareness Deviation: 0.00032″/0.008mm
- Resolution: .00005″/0.001mm
- Repeatability (2s): 0.00008″/0.002mm (0.00016″/0.004mm)
- Air Cushion: YES
- Squareness Probe: YES
- Battery Life: 12 hours
Features:
- Selectable motorized or manual carriage displacement
- Air Cushion
- Duel Probe Holder
- “Black mask” display with user-friendly functions
- Extremely easy to use
- Electronically adjustable measuring force
- Battery life: approximately 40 hours (lithium-ion batteries)
- Vast range of accessories
- All adjustments possible without tools
- Cast iron base for optimal stability
- RS 232 and USB interfaces
- Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta
- Accessory measuring probes up to 340mm in length available and provide excellent repeatability
V6 Electronic Height Gage includes the following:
- Charging unit
- Measuring insert with ruby ball 4mm diameter
- Probe holder elbow 8mm diameter
- Setting gage
- User’s manual
- Test certificate
Fowler V3 Electronic Height Gages:
- 54-192-340 V3 Electronic Height Gage: 16″/407mm
- 54-192-370 V3 Electronic Height Gage: 28″/711mm
Fowler V4 Electronic Height Gages:
- 54-191-440 V4 Electronic Height Gage: 16″/407mm
- 54-191-470 V4 Electronic Height Gage: 28″/711mm
Fowler V5 Electronic Height Gages:
- 54-199-540 V5 Electronic Height Gage: 0-16″/407mm
- 54-199-570 V5 Electronic Height Gage: 0-28″/711mm
- 54-199-590 V5 Electronic Height Gage: 0-43.7″/1110mm
Fowler V6 Electronic Height Gages
- 54-199-640 V6 Electronic Height Gage: 0-16″/407mm
- 54-199-670 V6 Electronic Height Gage: 0-28″/711mm
- 54-199-690 V6 Electronic Height Gage: 0-43.7″/1110mm
Fowler V7 Electronic Height Gages
- 54-199-740 Fowler V7 Electronic Height Gage: 16″/407mm
- 54-199-770 Fowler V7 Electronic Height Gage: 28″/710mm
- 54-199-790 Fowler V7 Electronic Height Gage: 43″/1109mm
Fowler V9 Electronic Height Gages
- 54-199-940 Fowler V9 Electronic Height Gage: 16″/406mm
- 54-199-970 Fowler V9 Electronic Height Gage: 28″/710mm
- 54-199-990 Fowler V9 Electronic Height Gage: 43″/1109mm
A short video on the Fowler/Trimos 54-192-670 V6 Electronic Height Gage
- What is included with the gage
- Quick product overview
