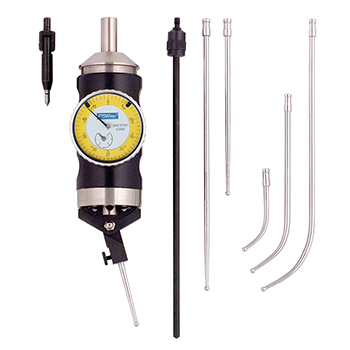

52-710-025 Fowler COAX-2D Dimensional Coaxial indicator Set: Inch
The Fowler 52-710-025 2D Coax Indicator Set has the following specifications:
Range: 0-.250″ Axis Offset
Repeatability: .0002″ of True Center
Use the Fowler 2D Coaxial Set for accurate component centering and positioning in most machining applications. The 2D Coaxial indicator can be used at any angle and the dial remains stationary during the rotation of the machine spindle.
Indicator assembly with 1.6″ (42.5mm) dial diameter
Graduations and revolution counter .0005″ (.01mm)
3 Internal and 3 External feelers
Center point feeler
Complete in a fitted case
The 52-710-025 COAX-2D Coaxial Indicator Set is on sale in the current Fowler Tool-A-Thon catalog.
Length: 6-7/8″ (175mm)
Shank: 3/8″ dia. x 7/8″ (10mm x 20mm) long
Feeler ball: 1/8″ (3mm) dia.
Dial readings: 0-50
Measuring range: .250″ (6mm) axis offset
Speed recommended not to exceed approx. 800 RPM
Locating accuracy to within .0002″ (.005mm) of true center
Capacity depends on feelers installed, but overall range is 5/32-12″ (4-300mm)
