A global distributor of precision measurement tools
PRODUCT CODE: 4336020

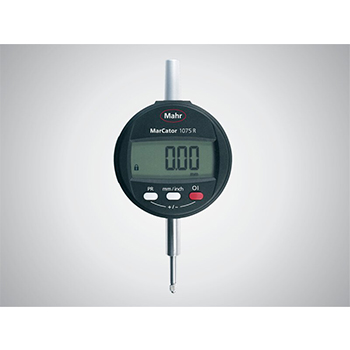

MarCator Digital Indicator # 4336020

Measuring Range: 0-12.5mm /.5"

Resolution: 0.005mm / .0001"

Price: $272.44 $222.00
Lowest Price Guaranteed
Quantity

Product Description

4336020 Mahr MarCator Digital Indicator: 0-12.5mm /.5″

The Mahr 4336020 MarCator Digital Indicator 1075 R has the following specifications:

  • Measuring Range: 0-12.5mm /.5″
  • Resolution: 0.005mm / .0001″
  • Span of error: 0.015G
  • Weight: 180G
  • Measuring force: 0.5 – 2N

Features:

  • Immediate measurement due to the reference system.
  • max measuring speed 1.5 m/sec.
  • Marconnect data output: choose either USB, OPTO RS232C DIGIMATICs.
  • High contrast liquid crystal display with 12mm high digitals.
  • Operating temperature 10-40c.
  • Class of protection IP52 according to IEC 60523.
  • Scope of supply: battery, operating instructions.

Functions:

  • ON/OFF,RESET (Set display to zero).
  • mm/inch, Reversal for counting direction
  • Reference-Lock/Unlock
  • PRESET (for entering a numerical value
  • DATA (Data transmission via connection cable)
  • LOCK Function: individual button can be locked
  • Auto-ON/OFF

Accessories:

  • Battery 3V, type CR 2032 – 4102520.
  • Data Connection Cable usm(2m) – 16 EXu – 4102357.
  • Data Connection Cable Opto RS232C 2m, WITH SUB-D JACK 9-PIN – 16 EXr – 4102410.
  • Data Connection Cable Digiatic 2m, flat plug 10-pin – 16EWd – 4102915.
  • Adapter Bush for adapting mount shank 8h6 mm to inch bore .375″ – 940- 4310103.
  • Cable Release to raise the measuring spindle – 951 – 4372000.
  • Lifter Protection Cap – 1086a – 4337320.
  • Lug Back, horizontal – 1075 Rbh – 4336041.
  • Lug Back, vertical – 1075 Rbv – 4336042.

Mahr Digital Indicators 1075 R:

  • 4336010 Digital Indicator: 12.5mm /.5″ – Resolution : 0.01mm / .0005″
  • 4336020 Digital Indicator: 12.5mm /.5″ – Resolution: 0.005mm / .0001″
  • 4336030 Digital Indicator: 12.5mm /.5″ – Resolution: 0.001mm / .00005″
