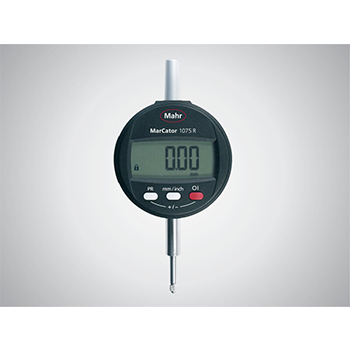

Mahr 4336030 MarCator Digital Indicator: 0-.5″/0-12.5mm
Product Code: 4336030MFGID: 4336030
Brand: MAHR
Product Description
4336030 Mahr MarCator Digital Indicator: 0-12.5mm /.5″
The Mahr 4336030 MarCator Digital Indicator 1075 R has the following specifications:
- Measuring Range: 0-12.5mm /.5″
- Resolution: 0.001mm / .00005″
- Span of error: 0.005G
- Weight: 180G
- Measuring Force: 0.5 – 3N
Features:
- Immediate measurement due to the reference system.
- Max measuring speed 1.5 m/sec.
- Marconnect data output: choose either USB, OPTO RS232C DIGIMATICs.
- High contrast liquid crystal display with 12mm high digitals.
- Operating temperature 10-40c.
- Class of protection IP52 according to IEC 60523.
- Scope of supply: battery, operating instructions.
Functions:
- ON/OFF,RESET (Set display to zero).
- mm/inch, Reversal for counting direction
- Reference-Lock/Unlock
- PRESET (for entering a numerical value
- DATA (Data transmission via connection cable)
- LOCK Function: individual button can be locked
- Auto-ON/OFF
Accessories:
- Battery 3V, type CR 2032 – 4102520.
- Data Connection Cable usm(2m) – 16 EXu – 4102357.
- Data Connection Cable Opto RS232C 2m, WITH SUB-D JACK 9-PIN – 16 EXr – 4102410.
- Data Connection Cable Digiatic 2m, flat plug 10-pin – 16EWd – 4102915.
- Adapter Bush for adapting mount shank 8h6 mm to inch bore .375″ – 940- 4310103.
- Cable Release to raise the measuring spindle – 951 – 4372000.
- Lifter Protection Cap – 1086a – 4337320.
- Lug Back, horizontal – 1075 Rbh – 4336041.
- Lug Back, vertical – 1075 Rbv – 4336042.
Mahr Digital Indicators 1075 R:
