Mahr 4337136 Digital Indicator 1086 Ri: 0-2″/0-50mm
Product Code: 4337136MFGID: 4337136
Brand: MAHR
Product Description

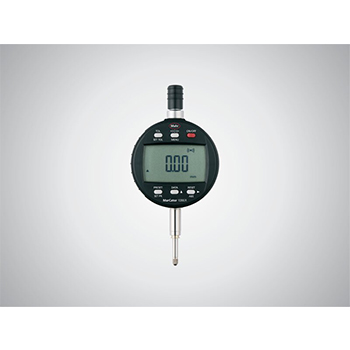

4337136 Mahr Digital Indicator 1086 Ri: 0-50mm /2″
The Mahr 4337136 Digital Indicator 1086 Ri has the following specifications:
- Measuring Range: 0-50mm /2″
- Resolution switchable: 0.01 mm/ .0005″
- Span of error: 0.02mm
- Measuring force: 1.25-2.70N
- Weight: 190G
- Mounting Shank: 8h6
Features:
- Integrated wireless data transmission.
- Immediate measurement due to the reference system.
- Individual button can be locked – lock functions.
- Operating and display unit can be rotated to 280 degree.
- High contrast lcd with 11mm high digits.
- Operating temperature approx 3 years(2000 work hrs/year).
- Maximum measuring speed 1.5m/s.
- Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
- Operating temperature 10-40 degree c.
- Class of protection IP42 in accordance to IEC 60523.
- Supplied with: battery, operating instructions.
Functions:
- ON/OFF,RESET (Set display to zero).
- mm/inch, Reversal for counting direction.
- TOl(enter tolerance limit values).
- PRESET (Allows the entry of any value using set button).
- DATA (When connected with data connection cable), factor (adjustable).
- ABS (display can be set to zero, without losing the reference to present value).
-
(tolerance GO/NO GO Display mode).
Mahr Digital Indicators 1086 Ri:
- 4337624 Digital Indicator: 0-12.5mm /.5″ – Measuring Force: 0.65 – 0.90N
- 4337625 Digital Indicator: 0-25mm /1″ – Measuring Force: 0.65-1.15N
- 4337626 Digital Indicator: 0-50mm /2″ – Measuring Force: 1.25-2.70N
- 4337627 Digital Indicator: 0-100mm /4″ – Measuring Force: 1.60-3.50N
- 4337628 Digital Indicator: 0-25mm /1″ – Measuring Force: 1.60-3.51N
- 4337134 Digital Indicator: 0-12.5mm /.5″ – Measuring Force: 0.65 – 0.90N
- 4337135 Digital Indicator: 0-25mm /1″ – Measuring Force: 0.65-1.15N
- 4337136 Digital Indicator: 0-50mm /2″ – Measuring Force: 1.25-2.70N
