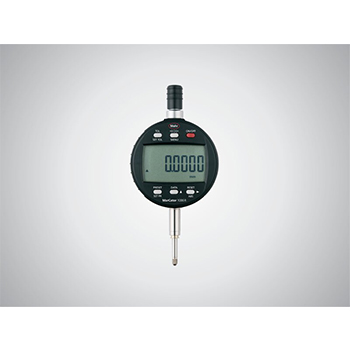

Mahr 4337622 MarCator Digital Indicator: 0-2″/0-50mm
Product Code: 4337622MFGID: 4337622
Brand: MAHR
Product Description
4337622 Mahr MarCator Digital Indicator: 0-50mm /2″
The Mahr 4337622 MarCator Digital Indicator 1086 R/1086 ZR has the following specifications:
- Measuring Range: 0-50mm /2″
- Resolution switchable: 0.0005 / 0.001 / 0.002/ 0.005 / 0.01 mm
- Span of error: 0.008mm
- Measuring force: 1.25-2.70N
- Weight: 190G
- Repeatability: 0.002mm
Features:
- Integrated wireless data transmission.
- Immediate measurement due to the reference system.
- Individual button can be locked – lock functions.
- Operating and display unit can be rotated to 280 degree.
- High contrast lcd with 11mm high digits.
- Operating temperature approx 3 years(2000 work hrs/year).
- Maximum measuring speed 1.5m/s.
- Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
- Operating temperature 10-40 degree c.
- Class of protection IP42 in accordance to IEC 60523.
- Supplied with: battery, operating instructions.
Functions::
- ON/OFF,RESET (Set display to zero).
- mm/inch, Reversal for counting direction.
- TOl(enter tolerance limit values).
- PRESET (Allows the entry of any value using set button).
- DATA (When connected with data connection cable), factor (adjustable).
- ABS (display can be set to zero, without losing the reference to present value).
-
(tolorance GO/NO GO Display mode).
Mahr MarCator Digital Indicators 1086 R / 1086 ZR: .002mm Repeatability
- 4337620 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 8h6
- 4337621 MarCator Digital Indicator: 25mm/1″ – Mounting shank 8h6
- 4337622 MarCator Digital Indicator: 50mm/2″ – Mounting shank 8h6
- 4337623 MarCator Digital Indicator: 100mm/4″ – Mounting shank 8h6
- 4337650 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 3/8″
- 4337651 MarCator Digital Indicator: 25mm/1″ – Mounting shank 3/8″
Mahr MarCator Digital Indicators 1086 R / 1086 ZR: .01mm Repeatability
- 4337130 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 8h6
- 4337131 MarCator Digital Indicator: 25mm/1″ – Mounting shank 8h6
- 4337132 MarCator Digital Indicator: 50mm/2″ – Mounting shank 8h6
- 4337133 MarCator Digital Indicator: 100mm/4″ – Mounting shank 8h6
- 4337155 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 3/8″
- 4337156 MarCator Digital Indicator: 25mm/1″ – Mounting shank 3/8″
