A global distributor of precision measurement tools
PRODUCT CODE: 4337621

MarCator Digital Indicator # 4337621

Measuring Range: 0-25mm /1"

Measuring Force: 0.65-1.15N

Price: $562.52 $459.00
Lowest Price Guaranteed
Quantity

Product Description

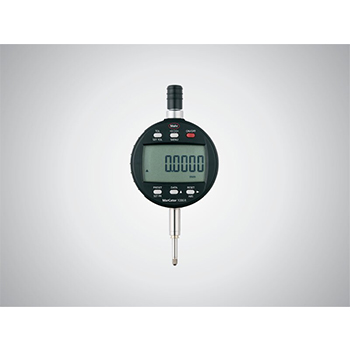

4337621 Mahr MarCator Digital Indicator: 0-25mm /1″

The Mahr 4337621 MarCator Digital Indicator 1086 R/1086 ZR has the following specifications:

  • Measuring Range: 0-25mm /1″
  • Resolution switchable: 0.0005 / 0.001 / 0.002/ 0.005 / 0.01 mm
  • Span of error: 0.005mm
  • Measuring force: 0.65-1.15N
  • Weight: 140G
  • Repeatability: 0.002mm

Features:

  • Integrated wireless data transmission.
  • Immediate measurement due to the reference system.
  • Individual button can be locked – lock functions.
  • Operating and display unit can be rotated to 280 degree.
  • High contrast lcd with 11mm high digits.
  • Operating temperature approx 3 years(2000 work hrs/year).
  • Maximum measuring speed 1.5m/s.
  • Marconnect data output: choose either USB, OPTO TS232C, digimatic or integrated wireless.
  • Operating temperature 10-40 degree c.
  • Class of protection IP42 in accordance to IEC 60523.
  • Supplied with: battery, operating instructions.

Functions:

  • ON/OFF,RESET (Set display to zero).
  • mm/inch, Reversal for counting direction.
  • TOl(enter tolerance limit values).
  • PRESET (Allows the entry of any value using set button).
  • DATA (When connected with data connection cable), factor (adjustable).
  • ABS (display can be set to zero, without losing the reference to present value).
  • (tolerance GO/NO GO Display mode).

Mahr MarCator Digital Indicators 1086 R / 1086 ZR: .002mm Repeatability

  • 4337620 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 8h6
  • 4337621 MarCator Digital Indicator: 25mm/1″ – Mounting shank 8h6
  • 4337622 MarCator Digital Indicator: 50mm/2″ – Mounting shank 8h6
  • 4337623 MarCator Digital Indicator: 100mm/4″ – Mounting shank 8h6
  • 4337650 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 3/8″
  • 4337651 MarCator Digital Indicator: 25mm/1″ – Mounting shank 3/8″
Mahr MarCator Digital Indicators 1086 R / 1086 ZR: .01mm Repeatability
  • 4337130 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 8h6
  • 4337131 MarCator Digital Indicator: 25mm/1″ – Mounting shank 8h6
  • 4337132 MarCator Digital Indicator: 50mm/2″ – Mounting shank 8h6
  • 4337133 MarCator Digital Indicator: 100mm/4″ – Mounting shank 8h6
  • 4337155 MarCator Digital Indicator: 12.5mm/.5″ – Mounting shank 3/8″
  • 4337156 MarCator Digital Indicator: 25mm/1″ – Mounting shank 3/8″
