  • Product Code: #2033123

    Maxum III Digital Comparator - # 2033123

    Stem length: 38mm / 1.50"

    Stem diameter: .375"

    Price: $731.00 $723.50
    Lowest Price Guaranteed
    Quantity

    Product Description

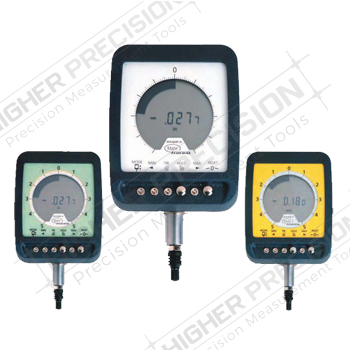

    2033123 Mahr Maxum III Digital Comparator - Short Range: 38mm / 1.50"

    The Mahr 2033123 Maxum III Digital Comparator - Short Range has the following specifications:

    • Digital Range - Short - long range: ±1.00mm / ± .040" - ±1.99mm / ± .100"
    • Digital Resolution - short - long range: 0.005mm / .0005" - 0.005mm / .0005"
    • Accuracy - Short - Long range: 0.5% of Total Range - 0.35% of Total Range
    • Stem Diameter: .375"
    • Stem length: 38mm / 1.50"
    • Total spindle travel - Short - long range: 3.04mm / .120" - 6.35mm / .250"
    • Weight: 385 g / 13.6 oz.
    • Temperature Operating: 10° to 55°C / 50° to 130°F
    • Gaging force: 3-4 oz/85 -112 grams, preloaded
    • Battery Life: 4000 hours

    Features:

    • Feature both display for accuracy and readability and unique fan analogue display trend and change.
    • User configurable in inch/metric units, normal / reverse sensing, resolution, analog scale, and tolerance setup & display.
    • Dynamic capabilities: min, max, TIr, hold, reset.
    • "Absolute" transducer - no over speed errors no missed counts. no missed readings.
    • Auto - power down - provides extremely low battery consumption, assuring long life from readily available commercial batteries.
    • Data output - 3 formals - Maxum, serial, or digimatic.
    • Both integral and remote readout versions available.
    • Easily used on snap gages Bore Gages, Comparator Stands, and Fixture Gages.
    • Auto - power off - provides extremely low battery consumption, assuring long life from readily available commercial batteries.
    • Special optional available: setup mode or calibration lockout, remote external port 4:5 ratio, 12 o'clock mounted integral transducer, integral vertical or horizontal lug back, 1.5, 2.0 or 3.0 inch stem length, and more.
    • IP54 protection.
    • Easy to select, order and operate.

    Mahr Maxum III Digital Comparators - Short Range:

    • 2033101 Maxum III Digital Comparator: 17mm/.670" - No output
    • 2033103 Maxum III Digital Comparator: 38mm/1.50" - No output
    • 2033105 Maxum III Digital Comparator: 17mm/.670" - Stem diameter 8mm
    • 2033107 Maxum III Digital Comparator: 38mm/1.50" - Stem diameter 8mm
    • 2033111 Maxum III Digital Comparator: 17mm/.670" - Digital output 6pin
    • 2033113 Maxum III Digital Comparator: 38mm/1.50" - Digital output 6pin
    • 2033115 Maxum III Digital Comparator: 17mm/.670" - Stem diameter 8mm
    • 2033117 Maxum III Digital Comparator: 38mm/1.50" - Stem diameter 8mm
    • 2033121 Maxum III Digital Comparator: 17mm/.670" - Digital output 10pin
    • 2033123 Maxum III Digital Comparator: 38mm/1.50" - Digital output 10pin
    • 2033125 Maxum III Digital Comparator: 17mm/.670" - Stem diameter 8mm
    • 2033127 Maxum III Digital Comparator: 38mm/1.50" - Stem diameter 8mm

    Mahr Maxum III Digital Comparators - Long Range:

    • 2033102 Maxum III Digital Comparator: 17mm/.670" - No output
    • 2033104 Maxum III Digital Comparator: 38mm/1.50" - No output
    • 2033106 Maxum III Digital Comparator: 17mm/.670" - 8mm
    • 2033108 Maxum III Digital Comparator: 38mm/1.50" - 8mm
    • 2033112 Maxum III Digital Comparator: 17mm/.670" - Digital output 6pin
    • 2033114 Maxum III Digital Comparator: 38mm/1.50" - Digital output 6pin
    • 2033116 Maxum III Digital Comparator: 17mm/.670" - 8mm
    • 2033118 Maxum III Digital Comparator: 38mm/1.50" - 8mm
    • 2033122 Maxum III Digital Comparator: 17mm/.670" - Digital output 10pin
    • 2033124 Maxum III Digital Comparator: 38mm/1.50" - Digital output 10pin
    • 2033126 Maxum III Digital Comparator: 17mm/.670" - 8mm
    • 2033128 Maxum III Digital Comparator: 38mm/1.50" - 8mm
  •
