  • Product Code: #513-464-10E

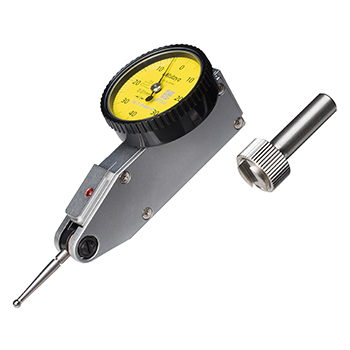

    Horizontal Basic Set Dial Test Indicator # 513-464-10E

    Range: 0.8mm

    Graduations: 0.01mm

    Price: $184.00 $150.33
    Lowest Price Guaranteed
    Quantity

    Product Description

    513-464-10E Mitutoyo Horizontal Basic Set Dial Test Indicator: 0.8mm

    The Mitutoyo 513-464-10E Horizontal Basic Set Dial Test Indicator has the following specifications:

    • Range: 0.8mm
    • Graduation: 0.01mm
    • Accuracy: 8µm
    • Dial Reading: 0-40-0
    • Measuring Force: 0.3N or less
    • Length: 20.9mm
    • Anti-magnetic
    • Jeweled Bearing
    • Compact

    Features:

    • Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    • No-clutch structure for automatic reversal of measuring direction.
    • One-piece bezel and crystal design with O-ring provide resistance to water and dust.
    • The glare-free flat crystal face has a scratch-resistant coating.
    • High sensitivity and quick response because of jeweled bearings.
    • Standard carbide contact point provide.
    • Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem
    • Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar

    Horizontal Dial Test Indicators: Metric

    Range 0.5mm, Graduation 0.01mm, Dial Reading 0-25-0, Jeweled Bearing, Anti-Magnet Type

    • 513-424-10E: Dial Test Indicator Basic Set 0.3N or less, Double Scale
    • 513-414-10E: Dial Test Indicator Basic Set 0.2N or less, Double Scale, Long Contact Point
    • 513-466-10E: Dial Test Indicator Basic Set 0.3N or less, Double Scale, Compact
    • 513-478-10E: Dial Test Indicator Basic Set 0.3N or less, 2mm Ruby Contact
    • 513-424-10T: Dial Test Indicator Full Set 0.3N or less, Double Scale
    • 513-414-10T: Dial Test Indicator Full Set 0.2N or less, Double Scale, Long Contact Point

    Range 0.8mm, Graduation 0.01mm, Dial Reading 0-40-0, Jeweled Bearing, Anti-Magnet Type

    • 513-404-10E: Dial Test Indicator Basic Set 0.3N or less
    • 513-474-10E: Dial Test Indicator Basic Set 0.3N or less, 2mm Ruby Contact
    • 513-464-10E: Dial Test Indicator Basic Set 0.3N or less, Compact
    • 513-404-10T: Dial Test Indicator Full Set 0.3N or less

    Range 1mm, Graduation 0.01mm, Dial Reading 0-50-0, Jeweled Bearing, Anti-Magnet Type

    • 513-415-10E: Dial Test Indicator Basic Set 0.2N or less, Long Contact Point
    • 513-477-10E: Dial Test Indicator Basic Set 0.2N or less, 2mm Ruby Contact, Long Contact Point
    • 513-415-10T: Dial Test Indicator Full Set 0.2N or less, Long Contact Point

    Range 1.5mm, Graduation 0.01mm, Dial Reading 0-25-0, Jeweled Bearing, Anti-Magnet Type

    • 513-426-10E: Dial Test Indicator Basic Set 0.2N or less, Double Scale, Revolution Counter

    Range 0.2mm, Graduation 0.002mm, Dial Reading 0-100-0, Jeweled Bearing, Anti-Magnet Type

    • 513-405-10E: Dial Test Indicator Basic Set 0.3N or less
    • 513-465-10E: Dial Test Indicator Basic Set 0.3N or less, Compact
    • 513-475-10H: Dial Test Indicator Basic Set 0.3N or less, 2mm Ruby Contact
    • 513-405-10T: Dial Test Indicator Full Set 0.3N or less

    Range 0.6mm, Graduation 0.002mm, Dial Reading 0-100-0, Jeweled Bearing, Anti-Magnet Type

    • 513-425-10E: Dial Test Indicator Basic Set 0.4N or less, Revolution Counter

    Range 0.14mm, Graduation 0.001mm, Dial Reading 0-70-0, Jeweled Bearing, Anti-Magnet Type

    • 513-401-10E: Dial Test Indicator Basic Set 0.3N or less
    • 513-471-10E: Dial Test Indicator Basic Set 0.3N or less, 2mm Ruby Contact
  •
