  • Product Code: #708MACZ W/SLC

    Dial Test Indicator # 708MACZ W/SLC

    Range: 0-.2mm

    Graduations: 0.002mm

    Price: $491.00 $486.09
    Lowest Price Guaranteed
    Quantity

    Product Description

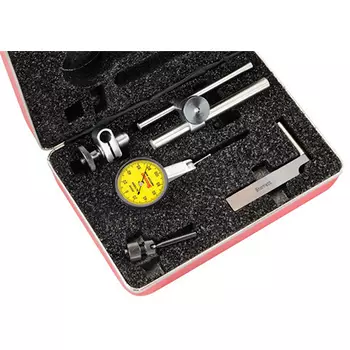

    708MACZ W/SLC Starrett Dial Test Indicator with Dovetails Mounts: 0.2mm

    The Starrett 708MACZ W/SLC Dial Test Indicator with Dovetail Mounts has the following specifications:

    • Range: 0.2mm
    • Graduations: .002mm
    • Dial Reading: 0-100-0
    • Contact Point Ball Diameter: .078"/2mm
    • Contact Point Length: 5/8"(16mm)
    • Dial Face Color: Yellow
    • Attachments Included: Yes
    • Standard Letter of Certification: Yes
    • EDP: 66873

    These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts.

    Features:

    • Made in the USA
    • These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
    • Three dovetail positioning mounts work with existing test indicator accessories
    • Precision gear-driven design with smooth, jeweled movement
    • Contact point reverses automatically, always maintaining clockwise hand rotation
    • Contacts are frictionally adjustable and replaceable
    • Revolution count hand for easy reading
    • Meet or exceed ISO accuracy specification
    • Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
    • Angled head for better reading position
    • Narrow body for inreach ability
    • Satin chrome finish for durability
    • Large 1-3/8" (35mm) dial diameter
    • Include long carbide contacts 13/16" (20mm)

    Starrett 708 Series Dial Test Indicators with Dovetail Mounts - Metric:

    • 708MAZ Dial Test Indicator w/o Attachments: 0.2mm
    • 708MACZ Dial Test Indicator With Attachments: 0.2mm
    • 708MAZ W/SLC Dial Test Indicator With Certificate but w/o Attachments: 0.2mm
    • 708MACZ W/SLC Dial Test Indicator With Certificate and With Attachments: 0.2mm

    The Starrett 708MACZ W/SLC Dial Test Indicator is compatible with the following accessories:

    • PT22429 Dovetail Body Clamp
    • PT22428 Swivel Post Snug with Clamp
    • PT22430 Snug and Rod Unit
    • PT27171 Metric Snug and Rod Unit
    • PT26007 Indicator Axial Support
    • PT99454 Indicator Attachment (Dovetail Style)
    • PT28315 Collet Adaptor (3/16" or 4.7mm Diameter)
    • PT28316 Collet Adaptor (Any Dovetail Test Indicator)
    • 711-35 Height Gage Attachment (3/16" x 3/8" or 4.8 x 9.5mm Shank)
    • 711-49 Height Gage Attachment (1/8" x 5/16" or 3 x 8mm Shank)
  •
