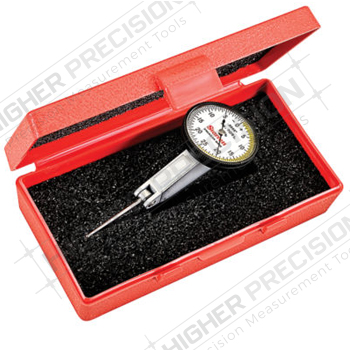

Starrett 709ALZ White Face Dial Test Indicator: .050″
Product Code: 709ALZMFGID: 709ALZ
Brand: Starrett
Product Description
709ALZ Starrett Dial Test Indicator with Dovetails Mounts: .050″
The Starrett 709ALZ Dial Test Indicator with Dovetail Mounts has the following specifications:
- Range: .050″
- Graduations: .0005″
- Dial Reading: 0-25-0
- Contact Point Ball Diameter: .078″/2mm
- Contact Point Length: 1-23/64″(34.4mm)
- Dial Face Color: White
- Attachments Included: No
- EDP: 65857
These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts.
Features:
- Made in the USA
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Meet or exceed ISO accuracy specification
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for inreach ability
- Satin chrome finish for durability
- Large 1-3/8″ (35mm) dial diameter
Starrett 709 Series Dial Test Indicators with Dovetail Mounts – Inch:
- 709AZ Dial Test Indicator w/o Attachments: .030″ (White)
- R709AZ Dial Test Indicator w/o Attachments: .030″ (Red)
- B709AZ Dial Test Indicator w/o Attachments: .030″ (Black)
- 709ALZ Dial Test Indicator w/o Attachments: .050″ (White)
- 709BZ Dial Test Indicator w/o Attachments: .060″ (White)
- 709ACZ Dial Test Indicator With Attachments: .030″ (White)
- R709ACZ Dial Test Indicator With Attachments: .030″ (Red)
- B709ACZ Dial Test Indicator With Attachments: .030″ (Black)
- 709ALCZ Dial Test Indicator With Attachments: .050″ (White)
- 709BCZ Dial Test Indicator With Attachments: .060″ (White)
The Starrett 709ALZ Dial Test Indicator is compatible with the following accessories:
- PT22429 Dovetail Body Clamp
- PT22428 Swivel Post Snug with Clamp
- PT22430 Snug and Rod Unit
- PT27171 Metric Snug and Rod Unit
- PT26007 Indicator Axial Support
- PT99454 Indicator Attachment (Dovetail Style)
- PT28315 Collet Adaptor (3/16″ or 4.7mm Diameter)
- PT28316 Collet Adaptor (Any Dovetail Test Indicator)
- PT11770A Tool Post Holder
