PRODUCT CODE: B811-1CZ

Dial Test Indicator # B811-1CZ

Range: .060"

Graduations: .001"

Price: $602 $565.88
Lowest Price Guaranteed
Quantity

Product Description

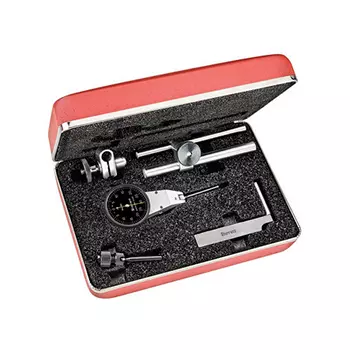

B811-1CZ Starrett Dial Test Indicator with Swivel Head: .060″

The Starrett B811-1CZ Dial Test Indicator has the following specifications:

  • Range: .060″
  • Graduations: .001″
  • Dial Reading: 0-30-0
  • Dial Face: Black
  • Contact Point Length: 1-5/16″(33mm)
  • Ball Diameter: .078″/2mm
  • With Swivel Head
  • With Attachments
  • EDP: 63263

The Starrett 811 Dial Test Indicators with Swivel Head are some of the most versatile and unique indicators available. The swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 Degrees.

Features:

  • Made in the USA
  • Contact point reverses automatically, always maintaining clockwise hand rotation
  • Contacts are frictionally adjustable and replaceable
  • Contacts also available individually in steel, carbide and different sizes
  • Some of the most versatile and unique indicators available
  • Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 Deg
  • In Case
  • Inch reading indicators are available with white, red, or black dials – metric indicators with yellow dials
  • Smooth, jeweled movement
  • Large, 1-3/8″ (35mm) dial diameter for increased readability
  • Two positioning mounts work with dovetail test indicator accessories

Starrett 811 Series Dial Test Indicators with Swivel Heads – Inch:

Without Attachments:

  • 811-5PZ   Dial Test Indicator: .030″ (White)
  • B811-5PZ Dial Test Indicator: .030″ (Black)
  • R811-5PZ Dial Test Indicator: .030″ (Red)
  • 811-1PZ   Dial Test Indicator: .060″ (White)
  • B811-1PZ Dial Test Indicator: .060″ (Black)
  • R811-1PZ Dial Test Indicator: .060″ (Red)

With Attachments:

  • 811-5CZ   Dial Test Indicator: .030″ (White)
  • B811-5CZ Dial Test Indicator: .030″ (Black)
  • R811-5CZ Dial Test Indicator: .030″ (Red)
  • 811-1CZ    Dial Test Indicator: .060″ (White)
  • B811-1CZ Dial Test Indicator: .060″ (Black)
  • R811-1CZ Dial Test Indicator: .060″ (Red)

The Starrett B811-1CZ Dial Test Indicator is compatible with the following accessories:

  • PT22429 Dovetail Body Clamp
  • PT22428 Swivel Post Snug with Clamp
  • PT22430 Snug and Rod Unit
  • PT27171 Metric Snug and Rod Unit
  • PT26007 Indicator Axial Support
  • PT99454 Indicator Attachment (Dovetail Style)
  • PT28315 Collet Adaptor (3/16″ or 4.7mm Diameter)
  • PT28316 Collet Adaptor (Any Dovetail Test Indicator)
  • 711-35 Height Gage Attachment (3/16″ x 3/8″ or 4.8 x 9.5mm Shank)
  • 711-49 Height Gage Attachment (1/8″ x 5/16″ or 3 x 8mm Shank)
