Product Description

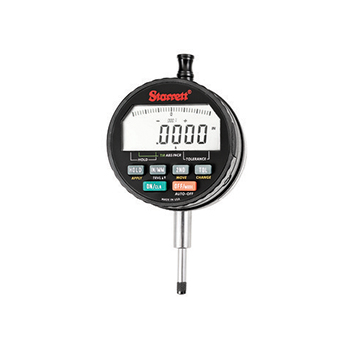

F2720-1AD Starrett Wisdom Electronic Indicator: 0-.6″/15mm
The Starrett F2720-1AD Wisdom Electronic Indicator has the following specifications:
- Range: 0-.6″/15mm
- Resolution: .001/.0005/.0001″ – 0.02/0.01/0.002mm
- Accuracy: .0002″/0.004mm
- .375″ Stem – #4-48 UNF Thread
- With Output
- EDP: 00043
The 2700 Wisdom Electronic Indicator is one of the most versatile of the electronic indicators. All indicators feature a glass scale design with an unsurpassed
accuracy of two resolutions when measuring from a known standard. All have rugged, sealed enclosures as well.
Features:
- Equipped with an RS232 output – ideal for use with DataSure Wireless Data Collection System
- 8 resolutions and 4 measuring ranges available
- Plus or minus travel direction
- Zero the tool at any position of the spindle
- Rotating bezel
- Auto Off after 10 minutes of nonuse
- Three power sources – operate by battery, A/C adapter or through data port
- Output jack allows data transmission
Display Features:
- Rugged, sealed enclosures
- Our most versatile line of electronic indicators
- Available in three styles
- Remote display and accompanying probe series
- Glass scale design with an unsurpassed accuracy of two resolutions when measuring from a known standard
- American designed and manufactured
- All available resolutions can be utilized in the same indicator, provided they are coarser than the resolution of the purchased model
- 10 resolutions and 5 measuring ranges available
- Starrett can customize WISDOM models to meet your needs
- Units can be designed with features such as: Special measuring ratios like 2:1 and 4:36
- Rotating bezel
- Output data can be used by a variety of peripherals for analysis, data collection and hard copy documentation
- Output jack allows data transmission
- Zero the tool at any position of the spindle
- Hold button to freeze display: Displays and holds the reading after the measurement has been taken
- Preset mode to install any reading at any point in the display. Reading is retained even if the indicator is turned off
- Plus or minus travel direction
- Auto Off: After 10 minutes of nonuse. When Auto Off is engaged, an hourglass figure appears at the left side of the display
- T.I.R.: Displays the difference between the highest and lowest values reached
- Maximum Reading Hold
Wisdom Electronic Indicators – .375″ Stem – #4-48 UNF Thread
Range: 0-.6″/15mm
- F2720IQ
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2720AD
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2720-1AD Electronic Indicator: Resolution .001/.0005/.0001 – .02/.01/.002/.001mm
F2720AD has Absolute/Preset Measuring Mode
Range: 0-1″/25mm
- F2730IQ
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2730-1IQ Electronic
Indicator: Resolution .001/.0005/.0001 – .02/.01/.002/.001mm
- F2730AD
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2730-1AD Electronic
Indicator: Resolution .001/.0005/.0001 – .02/.01/.002/.001mm
F2730AD and F2730-1AD have the Absolute/Preset Measuring Mode
Range: 0-2″/50mm
- F2740IQ Electronic
Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
- F2740AD Electronic
Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
F2740AD has the Absolute/Preset Measuring Mode
Range: 0-4″/100mm
- F2750IQ
Electronic Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
- F2750AD Electronic
Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
F2750AD has the Absolute/Preset Measuring Mode
Wisdom Electronic Indicators – 8mm Stem – M2.5 x 0.45 UNF Thread
Range: 0-.6″/15mm
- F2720IQM
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2720ADM
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2720-1ADM Electronic
Indicator: Resolution .001/.0005/.0001″ – .02/.01/.002/.001mm
F2720ADM has Absolute/Preset Measuring Mode
Range: 0-1″/25mm
- F2730IQM
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2730-1IQM Electronic Indicator: Resolution .001/.0005/.0001″ – .02/.01/.002/.001mm
- F2730ADM
Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
- F2730-1ADM Electronic Indicator: Resolution .001/.0005/.0001″ – .02/.01/.002/.001mm
F2730ADM and F2730-1ADM have the Absolute/Preset Measuring Mode
Range: 0-2″/50mm
- F2740IQM Electronic
Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
- F2740ADM Electronic
Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
F2740ADM has the Absolute/Preset Measuring Mode
Range: 0-4″/100mm
- F2750IQM
Electronic Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
- F2750ADM Electronic
Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
F2750ADM has the Absolute/Preset Measuring Mode
