PRODUCT CODE: F2720-1ADM

Wisdom Electronic Indicator # F2720-1ADM

Range: 0-.6"/15mm

Accuracy: .0002"/.004mm

Price: $431 $426.69
Lowest Price Guaranteed
Quantity

Product Description

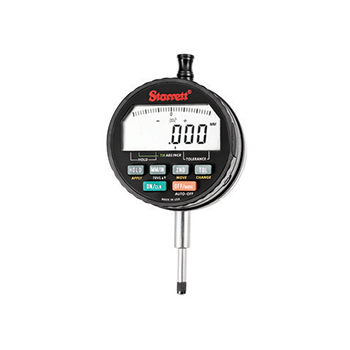

F2720-1ADM Starrett Wisdom Electronic Indicator: 0-.6″/15mm

The Starrett F2720-1ADM Wisdom Electronic Indicator has the following specifications:

  • Range: 0.6″/15mm
  • Resolution: .001/.0005/.0001″/0.02/0.01/0.002mm
  • Accuracy: �.0002″/�0.004mm
  • 8mm Stem – M2.5 x 0.45 Thread
  • With Output
  • EDP: 09993

The 2700 Wisdom Electronic Indicator is one of the most versatile of the electronic indicators. All indicators feature a glass scale design with an unsurpassed accuracy of � two resolutions when measuring from a known standard. All have rugged, sealed enclosures as well.

Features:

  • Equipped with an RS232 output – ideal for use with DataSure Wireless Data Collection System
  • 8 resolutions and 4 measuring ranges available
  • Plus or minus travel direction
  • Zero the tool at any position of the spindle
  • Rotating bezel
  • Auto Off after 10 minutes of nonuse
  • Three power sources – operate by battery, A/C adapter or through data port
  • Output jack allows data transmission

Display Features:

  • Rugged, sealed enclosures
  • Our most versatile line of electronic indicators
  • Available in three styles
  • Remote display and accompanying probe series
  • Glass scale design with an unsurpassed accuracy of two resolutions when measuring from a known standard
  • American designed and manufactured
  • All available resolutions can be utilized in same indicator, provided they are coarser than the resolution of the purchased model
  • 10 resolutions and 5 measuring ranges available
  • Starrett can customize WISDOM models to meet your needs
  • Units can be designed with features such as: Special measuring ratios like 2:1 and 4:36
  • Rotating bezel
  • Output data can be used by a variety of peripherals for analysis, data collection and hard copy documentation
  • Output jack allows data transmission
  • Zero the tool at any position of the spindle
  • Hold button to freeze display: Displays and holds the reading after the measurement has been taken
  • Preset mode to install any reading at any point in the display. Reading is retained even if the indicators is turned off
  • Plus or minus travel direction
  • Auto Off: After 10 minutes of nonuse. When Auto Off is engaged, an hourglass figure appears at the left side of the display
  • T.I.R.: Displays the difference between the highest and lowest values reached
  • Maximum Reading Hold

Wisdom Electronic Indicators – 8mm Stem – M2.5 x 0.45 UNF Thread

Range: 0-.6″/15mm
  • F2720IQM     Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2720ADM    Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2720-1ADM Electronic Indicator: Resolution .001/.0005/.0001″ – .02/.01/.002/.001mm

F2720ADM has Absolute/Preset Measuring Mode

Range: 0-1″/25mm
  • F2730IQM     Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2730-1IQM  Electronic Indicator: Resolution  .001/.0005/.0001″ – .02/.01/.002/.001mm
  • F2730ADM    Electronic Indicator: Resolution  .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2730-1ADM Electronic Indicator: Resolution .001/.0005/.0001″ – .02/.01/.002/.001mm

F2730ADM and F2730-1ADM have the Absolute/Preset Measuring Mode

Range: 0-2″/50mm
  • F2740IQM  Electronic Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
  • F2740ADM Electronic Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm

F2740ADM has the Absolute/Preset Measuring Mode

Range: 0-4″/100mm
  • F2750IQM   Electronic Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm
  • F2750ADM Electronic Indicator: .001/.0005/.0001″ – .02/.01/.002/.001mm

F2750ADM has the Absolute/Preset Measuring Mode

Wisdom Electronic Indicators – .375″ Stem – #4-48 UNF Thread

Range: 0-.6″/15mm
  • F2720IQ     Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2720AD    Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2720-1AD Electronic Indicator: Resolution .001/.0005/.0001 – .02/.01/.002/.001mm

F2720AD has Absolute/Preset Measuring Mode

Range: 0-1″/25mm
  • F2730IQ     Electronic Indicator: Resolution .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2730-1IQ  Electronic Indicator: Resolution  .001/.0005/.0001 – .02/.01/.002/.001mm
  • F2730AD    Electronic Indicator: Resolution  .001/.0005/.0001/.00005″ – .02/.01/.002/.001mm
  • F2730-1AD Electronic Indicator: Resolution .001/.0005/.0001 – .02/.01/.002/.001mm

F2730AD and F2730-1AD have the Absolute/Preset Measuring Mode

Range: 0-2″/50mm
  • F2740IQ  Electronic Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
  • F2740AD Electronic Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm

F2740AD has the Absolute/Preset Measuring Mode

Range: 0-4″/100mm
  • F2750IQ   Electronic Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm
  • F2750AD  Electronic Indicator: .001/.0005/.0001 – .02/.01/.002/.001mm

F2750AD has the Absolute/Preset Measuring Mode
